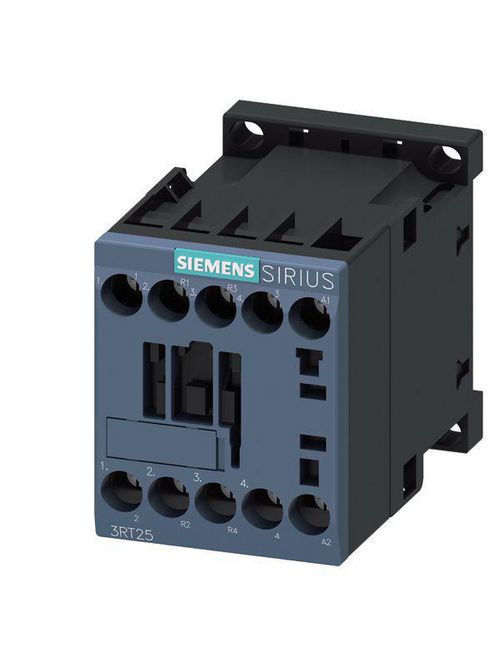

S-A 3RT25161AK60 CONTACTOR S00 9A 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$81.32/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT25161AK60
North Coast Part # 1161536

Specifications

  • Type of actuation: / AC
  • Connection type: Screw connection
  • description of product type: 3RT25
  • Number of main contacts as opener: 2
  • suitable for series installation: true
  • Number of making contacts and main contacts: 2
  • suitable for mounting onto standard rails: false
  • rated operating power (AC-4, 400 V): 11.0 kilowatt
  • Max. rated AC voltage for controls, 50 Hz: 110 volt
  • Rated operating power with AC-3, 400 V: 4.0 kilowatt
  • max. rated AC voltage for controls (60 Hz): 120 volt
  • rated operational power AC-1 at 400 V: 11.0 kilowatt
  • Rated operating current Ie with AC-3, 400 V: 9 ampere
  • min. rated control voltage Us with AC 50 Hz: 110 volt
  • min. rated control voltage Us with AC 60 Hz: 120 volt
  • Rated operating current Ie with AC-1, 400 V: 18 ampere

Overview

UPC 66264391649
Item Long Description Cont., AC-3, 4KW/400V AC-1 18a, AC 110v 50HZ/120v 60HZ, 4-pole, 2s+2oe, size s00, screw terminals
GTiN 00662643916492
Length 2.450 in
Width 1.970 in
Size S00
Operating Temperature 60 To 25 C
Type 3RT2 contactor
Applications Contactors for switching motors
Height 3.080 in
Country of Origin Germany
Connection Type Screw Connection
Coil Voltage 120 V
Family Brand Name Siemens
Number of Phases 4 Phase
TC Connection screw-type terminals
Contact Rating A600 / Q600
Sub Brand SIRIUS
