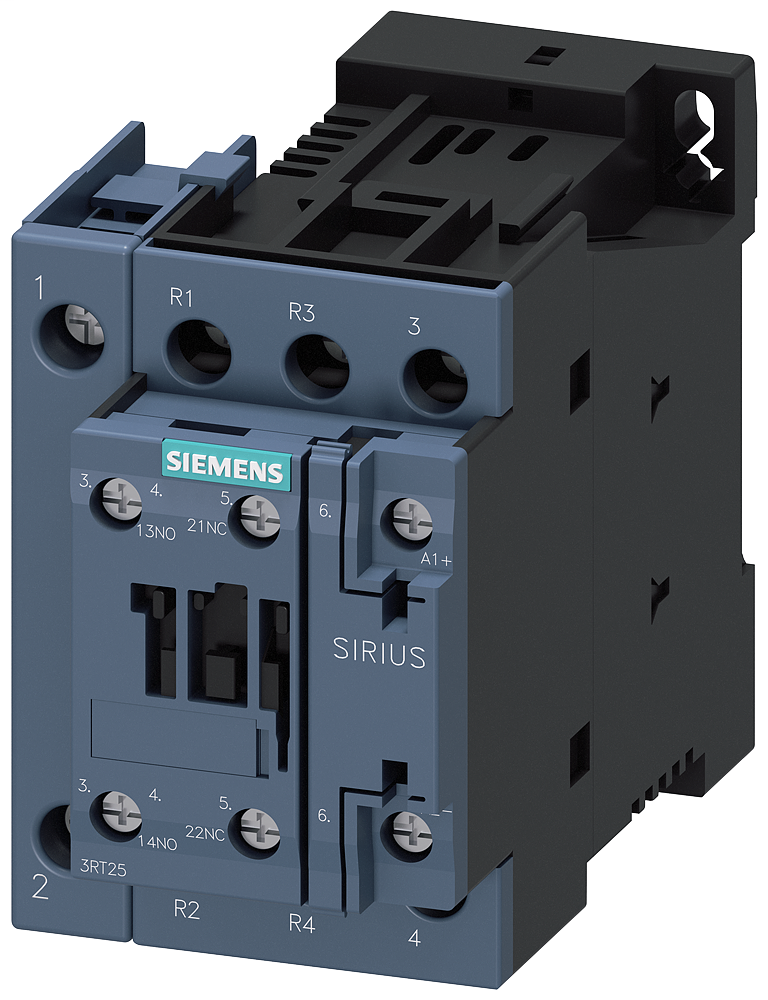

S-A 3RT25261BB40 CONTACTOR_AC_3RT25
$335.58/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT25261BB40
North Coast Part # 1351771

Specifications

  • Number of normally open contacts as main contact: 2
  • Number of normally closed contacts as main contact: 2
  • Number of auxiliary contacts as normally open contact: 1
  • Number of auxiliary contacts as normally closed contact: 1
  • Rated operation current Ie at AC-3, 400 V: 25 A
  • Rated operation current Ie at AC-1, 400 V: 40 A
  • Rated control supply voltage Us at DC: 24 V
  • Modular version: true
  • Rated operation power at AC-3, 400 V: 11.0 kW
  • Type of electrical connection of main circuit: Screw connection
  • Voltage type for actuating: DC

Overview

UPC 66264391692
GTiN 00662643916928
Length 3.670 in
Width 3.040 in
Size S0
Operating Temperature 60 To 25 C
Type 3RT2 contactor
Applications Contactors for switching motors
Height 5.120 in
Country of Origin Germany
Connection Type Screw Connection
Family Brand Name Siemens
Number of Phases 4 Phase
TC Connection screw-type terminals
Contact Rating A600 / Q600
Sub Brand SIRIUS
