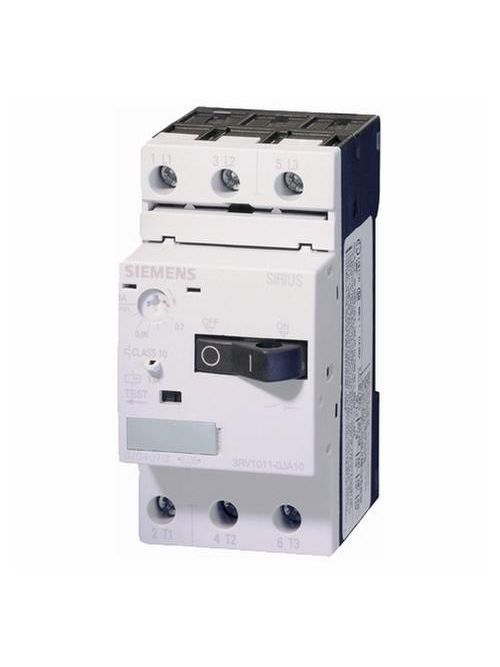

Siemens Industry 3RV1011-1KA10 3-Pole 12 Amp 690 VAC 3-Phase Screw Terminal Thermal Magnetic Motor Starter Protector
Product image thumbnail 0
Product image thumbnail 1
$444.53/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RV1011-1KA10
North Coast Part # 825784

Specifications

  • Pole number: 3
  • Protection type IP: IP20
  • Release system: magnetic
  • Manner of using: Rocker button
  • Sensitive to phase failure: true
  • Connection type: Screw connection
  • description of product type: 3RV1
  • max. rated operating voltage: 690 volt
  • min. rated operating voltage: 690 volt
  • Rated permanent current Iu: 13.0 ampere
  • Integrated auxiliary switch present: false
  • Integrated undervoltage tripper present: false
  • Device type: Einbaugerät Festeinbautechnik
  • suitable for mounting onto standard rails: false
  • Rated operating power with AC-3, 230 V: 3.0 kilowatt
  • Rated operating power with AC-3, 400 V: 6.0 kilowatt
  • Power loss per pole, current-dependent [PlIp]: 3.1 watt
  • Lowest value of setting range for overload tripper: 9 ampere
  • Greatest value of overload release adjustment range: 12.5 ampere
  • Rated current [In] for the power loss specification: 13.0 ampere
  • rated service short-circuit breaking capacity Ics at 400 V, 50 Hz: 50000.0 ampere

Overview

UPC 75455440906
GTiN 00754554409061
Family Brand Name Siemens
Width 45.0 mm
Depth 75.0 mm
Height 90.0 mm
Number of Poles 3 Pole
Connection Type Screw Connection
