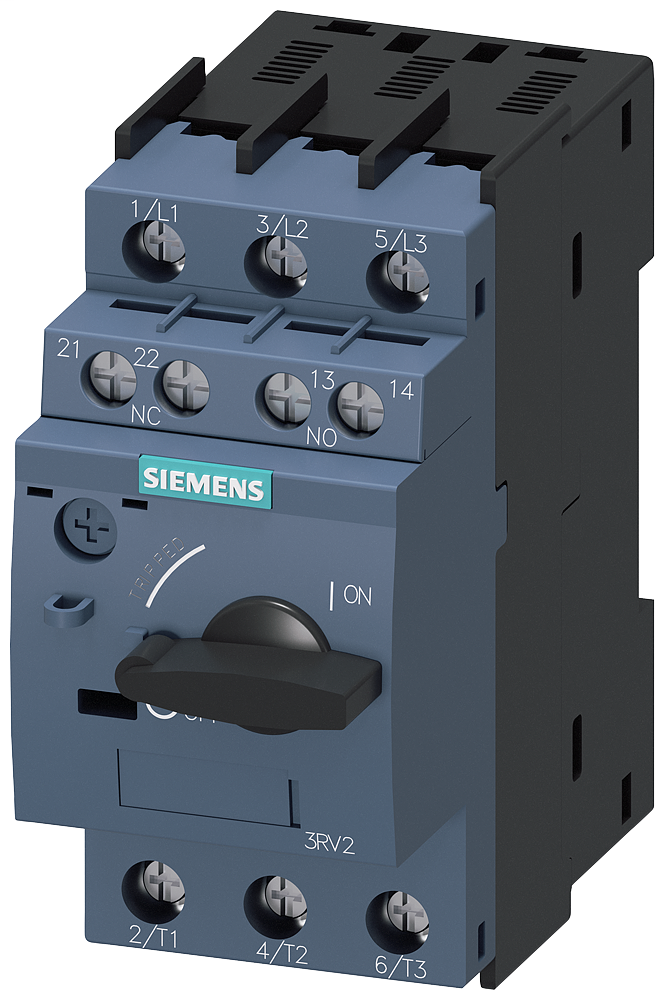

S-A 3RV20111CA15 SWITCH_MOTOR_3RV20
Product image thumbnail 0
Product image thumbnail 1
$237.85/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RV20111CA15
North Coast Part # 1495076

Specifications

  • Pole number: 3
  • Manner of using: Toggle
  • Protection type IP: IP20
  • Release system: magnetic
  • Sensitive to phase failure: true
  • Connection type: Screw connection
  • description of product type: 3RV2
  • Rated permanent current Iu: 3.0 ampere
  • max. rated operating voltage: 690 volt
  • min. rated operating voltage: 690 volt
  • Integrated auxiliary switch present: true
  • Number of auxiliary contacts as opener: 1
  • Number of auxiliary contacts as shutter: 1
  • Integrated undervoltage tripper present: false
  • Device type: Einbaugerät Festeinbautechnik
  • suitable for mounting onto standard rails: false
  • Rated operating power with AC-3, 230 V: 0.0 kilowatt
  • Rated operating power with AC-3, 400 V: 1.0 kilowatt
  • Power loss per pole, current-dependent [PlIp]: 2.4 watt
  • Lowest value of setting range for overload tripper: 1.8 ampere
  • Greatest value of overload release adjustment range: 2.5 ampere
  • Rated current [In] for the power loss specification: 3.0 ampere
  • rated service short-circuit breaking capacity Ics at 400 V, 50 Hz: 100000.0 ampere

Overview

UPC 66264392189
Item Long Description Switch_motor -3RV2011-1ca15
GTiN 00662643921892
Length 4.020 in
Width 45.0 mm
Depth 97.0 mm
Height 97.0 mm
Country of Origin Germany
Connection Type Screw Connection
Family Brand Name Siemens
Number of Poles 3 Pole
