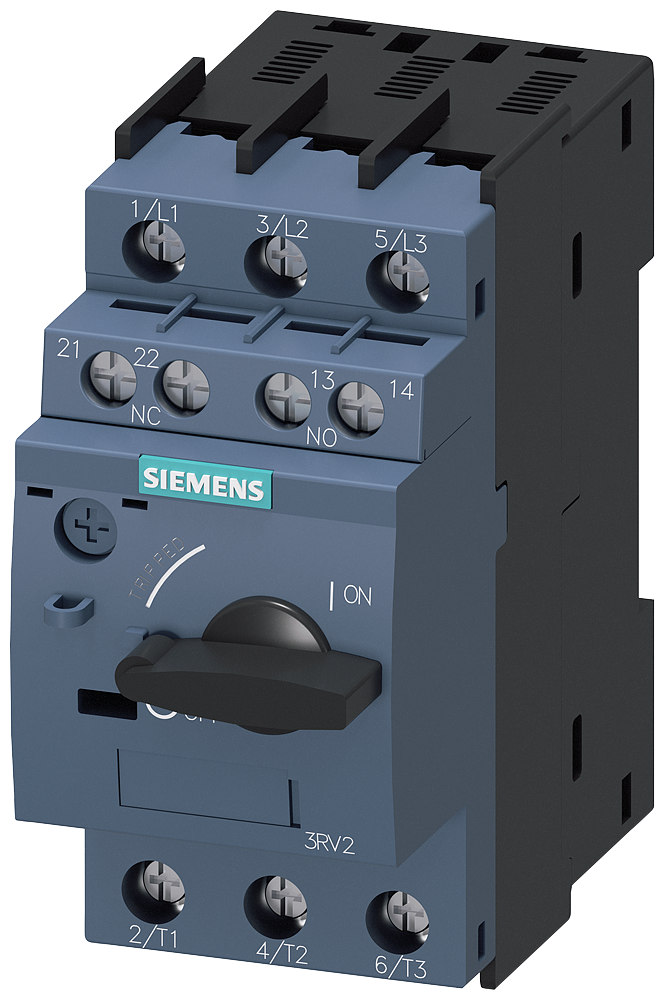

S-A 3RV20111DA15 SWITCH_MOTOR_3RV20
$199.38/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RV20111DA15
North Coast Part # 1495031

Specifications

  • Number of poles: 3
  • Adjustment range undelayed short-circuit release: 42 A
  • Rated operation power at AC-3, 400 V: 1.1 kW
  • Rated permanent current Iu: 3.2 A
  • Rated operating voltage: 690 V
  • Overload release current setting: 2.2 A
  • Overload release current setting: 3.2 A
  • Width: 45.0 mm
  • Height: 97.0 mm
  • Depth: 97.0 mm
  • With integrated auxiliary switch: true
  • With thermal protection: true
  • Rated operation power at AC-3, 230 V: 0.55 kW
  • Phase failure sensitive: true
  • With integrated under voltage release: false
  • Rated short-circuit breaking capacity lcu at 400 V, AC: 100.0 kA
  • Degree of protection (IP): IP20
  • Type of electrical connection of main circuit: Screw connection
  • Type of control element: Turn button
  • Switch off technique: Magnetic
  • Device construction: EinbaugerSt Festeinbautechnik

Overview

UPC 66264392194
GTiN 00662643921946
Length 4.020 in
Width 45.0 mm
Operating Temperature 60 To 20 C
Voltage 690 Volt
Type 3RV2 circuit breaker
Applications Used as Manual Motor Controller and in Group Installation
Depth 97.0 mm
Height 97.0 mm
Country of Origin Germany
Connection Type Screw Connection
Family Brand Name Siemens
TC Connection screw-type terminals
Environmental Conditions 80 to 50 C
Number of Poles 3 Pole
Operating Cycles 100000
Sub Brand SIRIUS
