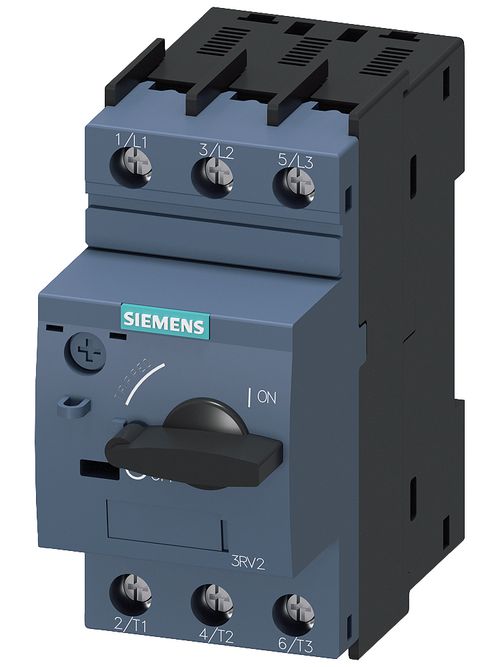

Siemens Industry 3RV20111GA10 3-Pole 6.3 Amp 690 VAC 3-Phase Screw Terminal Thermal Magnetic Motor Starter Protector
$154.42/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RV20111GA10
North Coast Part # 931176

Specifications

  • Height: 4.020 IN
  • Width: 1.930 IN
  • Length: 4.020 IN
  • Gross Weight per Pack: 0.767 Lbs
  • Packaging Description: Piece
  • Country of Origin: DE
  • ROHS Indicator: DC
  • Overload release current setting: 4.5 - 6.3 A
  • With integrated auxiliary switch: false
  • Rated operating voltage: 690.0 - 690.0 V
  • Rated short-circuit breaking capacity lcu at 400 V, AC: 100.0 kA
  • Switch off technique: Magnetic
  • Rated operation power at AC-3, 230 V: 1.5 kW
  • Degree of protection (IP): IP20
  • Rated operation power at AC-3, 400 V: 2.2 kW
  • Type of control element: Turn button
  • With integrated under voltage release: false
  • With thermal protection: Ja
  • Number of poles: 3
  • Rated permanent current Iu: 6.3 A
  • Depth: 97.0 mm
  • Type of electrical connection of main circuit: Screw connection
  • Phase failure sensitive: true
  • Adjustment range undelayed short-circuit release: 82.0 - 82.0 A

Categories

Overview

UPC 66264392402
GTiN 00662643924022
Length 4.020 in
Width 1.930 in
Operating Temperature 60 To 20 C
Voltage 690 Volt
Type Magnetic Trip
Applications For Manual Motor Controller and used in Group Installation
Depth 97.0 mm
Height 4.020 in
Country of Origin Germany
Connection Type Screw Connection
Temperature Rating 60 - 20 C
Family Brand Name Siemens
TC Connection screw-type terminals
Blade Dimensions 45 mm W x 96 mm D x 97 mm H
Environmental Conditions -50 to 80 C
Number of Poles 3 Pole
Operating Cycles 100000
Sub Brand Sirius
