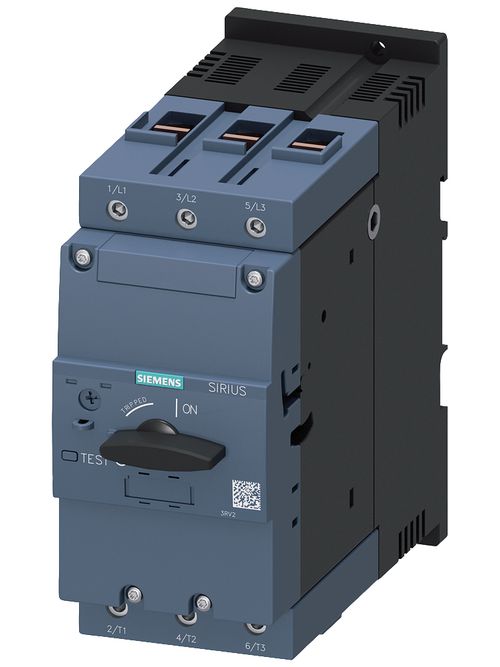

S-A 3RV20414JA10 CIRCUIT BREAKER. S
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$731.61/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RV20414JA10
North Coast Part # 1835401

Specifications

  • Pole number: 3
  • Manner of using: Toggle
  • Protection type IP: IP20
  • Release system: magnetic
  • Sensitive to phase failure: true
  • Connection type: Screw connection
  • description of product type: 3RV2
  • max. rated operating voltage: 690 volt
  • min. rated operating voltage: 690 volt
  • Rated permanent current Iu: 63.0 ampere
  • Integrated auxiliary switch present: false
  • Integrated undervoltage tripper present: false
  • Device type: Einbaugerät Festeinbautechnik
  • suitable for mounting onto standard rails: false
  • Rated operating power with AC-3, 230 V: 19.0 kilowatt
  • Rated operating power with AC-3, 400 V: 30.0 kilowatt
  • Power loss per pole, current-dependent [PlIp]: 11.3 watt
  • Lowest value of setting range for overload tripper: 45 ampere
  • Greatest value of overload release adjustment range: 63 ampere
  • Rated current [In] for the power loss specification: 63.0 ampere
  • rated service short-circuit breaking capacity Ics at 400 V, 50 Hz: 65000.0 ampere

Overview

GTiN 00804766370151
Depth 176.0 mm
Country of Origin Germany
Connection Type Screw Connection
Family Brand Name Siemens
Number of Poles 3 Pole
Product UPC 80476637015
Width 70.0 mm
Height 165 mm
