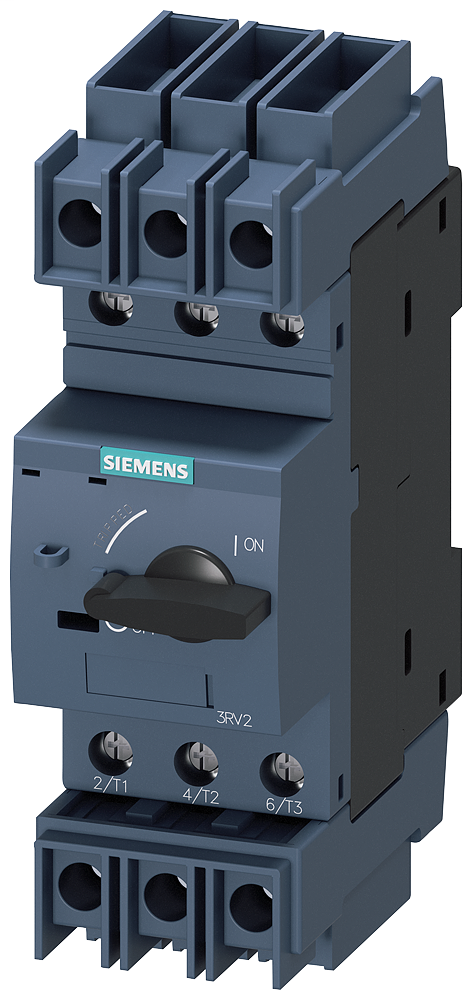

Siemens Industry 3RV27111DD10 3-Pole 690 VAC 3.2 Amp Screw Terminal Thermal Magnetic Circuit Breaker
$346.17/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RV27111DD10
North Coast Part # 1007385

Specifications

  • Number of auxiliary contacts as normally open contact: 0
  • Number of auxiliary contacts as normally closed contact: 0
  • Number of poles: 3
  • Number of auxiliary contacts as change-over contact: 0
  • Adjustment range undelayed short-circuit release: 42 A
  • Rated permanent current Iu: 3.2 A
  • Motor drive integrated: false
  • With switched-off indicator: false
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: 100.0 kA
  • Suitable for DIN rail (top hat rail) mounting: false
  • Integrated earth fault protection: false
  • Motor drive optional: false
  • With under voltage release: false
  • Degree of protection (IP): IP20
  • Position of connection for main current circuit: Other
  • Type of electrical connection of main circuit: Screw connection
  • Type of control element: Toggle
  • Device construction: Built-in device fixed built-in technique

Overview

UPC 66264392278
GTiN 00662643922783
Length 7.520 in
Width 2.170 in
Operating Temperature -20 C
Voltage 690 Volt
Type 3RV2 circuit breaker
Applications For system protection
Height 4.340 in
Country of Origin Germany
Connection Type Screw Connection
Family Brand Name Siemens
TC Connection screw-type terminals
Actuator selector switch
Environmental Conditions 80 to 50 C
Number of Poles 3 Pole
Sub Brand SIRIUS
