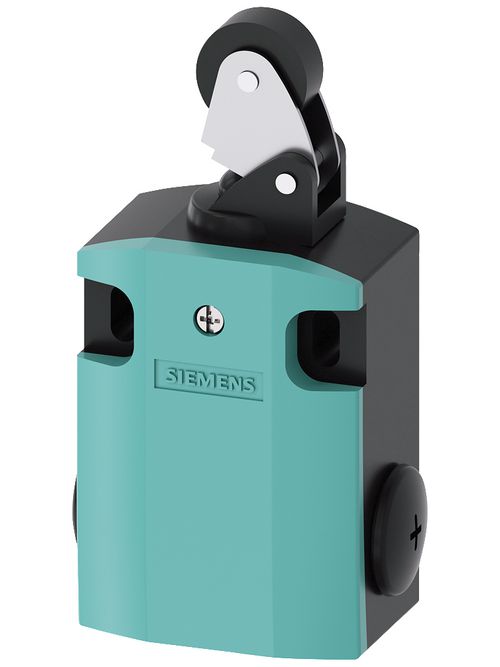

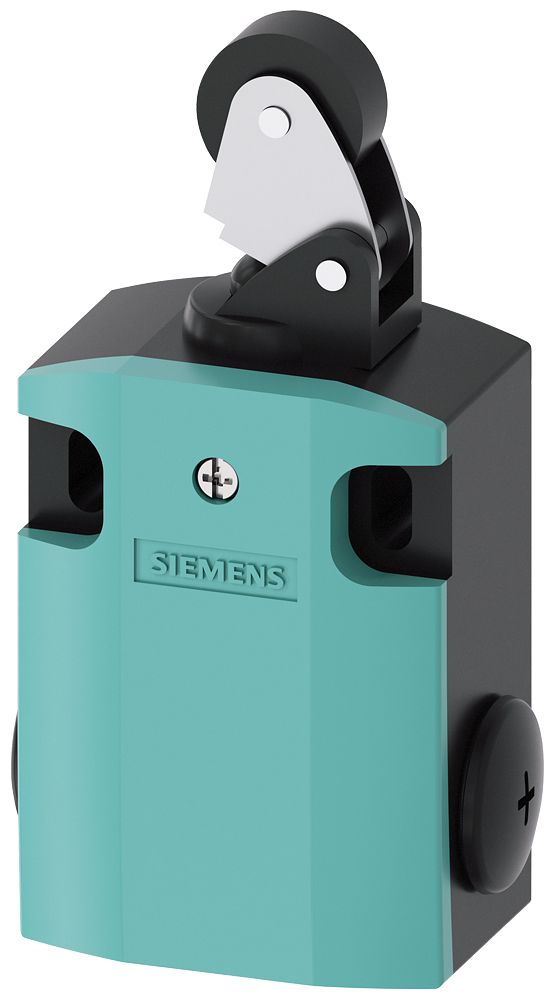

Siemens Industry 3SE51220CE01 M20 x 1.5 Metal 1NO 1NC Snap Action Roller Lever Limit Switch
$160.24/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3SE51220CE01
North Coast Part # 1493454

Specifications

  • Number of safety auxiliary contacts: 1
  • Rated operation current Ie at AC-15, 125 V: 6 A
  • Rated operation current Ie at AC-15, 24 V: 6 A
  • Rated operation current Ie at DC-13, 24 V: 3 A
  • Number of contacts as normally closed contact: 1
  • Number of contacts as normally open contact: 1
  • Number of contacts as change-over contact: 0
  • Ambient temperature during operating: 85 °C
  • Ambient temperature during operating: -25 °C
  • Suitable for safety functions: true
  • Forced opening: true
  • Rated operation current Ie at DC-13, 125 V: 0.55 A
  • Width sensor: 56.0 mm
  • Height of sensor: 37.8 mm
  • With status indication: false
  • Output electronic: false
  • Length of sensor: 119.0 mm
  • Switching function latching: false
  • Switching function: Quick-break switch
  • Material housing: Metal
  • Coating housing: Lacquered
  • Type of interface for safety communication: None
  • Type of electric connection: Cable entry metrical
  • Explosion safety category for gas: None
  • Explosion safety category for dust: None
  • Construction type housing: Cuboid
  • Degree of protection (IP): IP66/IP67
  • Type of control element: Roller lever
  • Type of interface: None
  • Alignment of the control element: Roller cam straight
  • Degree of protection (NEMA): 12

Overview

UPC 75455495470
GTiN 00754554954707
Length 6.540 in
Width 2.210 in
Height 3.080 in
Country of Origin Germany
Connection Type Cable Entry Metrical
Family Brand Name Siemens
Housing Material Metal
