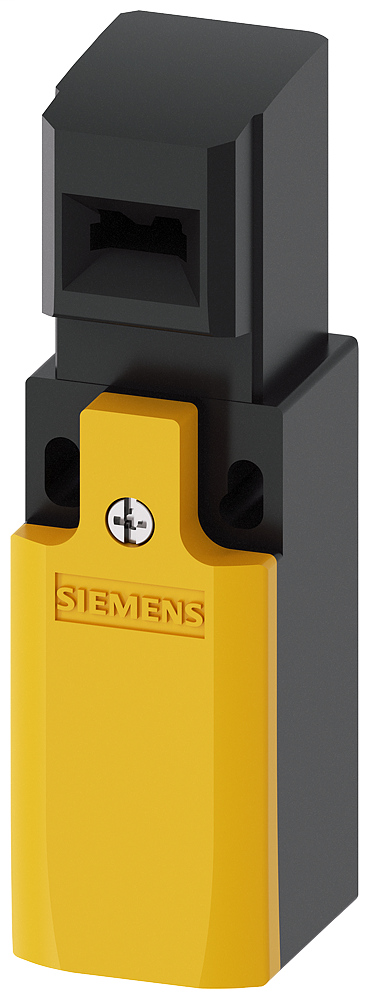

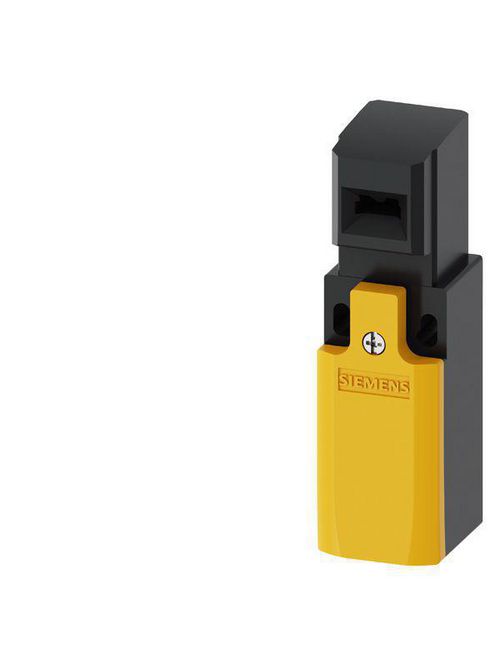

Siemens Industry 3SE5232-0RV40 1NO 1NC Plastic Screw Terminal Safety Position Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$123.67/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3SE5232-0RV40
North Coast Part # 762516

Specifications

  • Forced opening: true
  • Number of changers: 0
  • Protection type IP: IP65
  • Interface design: Without
  • Number of making contacts: 1
  • Status display present: false
  • Number of breaking contacts: 1
  • Width of sensor: 31.0 millimetre
  • Height of sensor: 33.0 millimetre
  • Housing construction form: Block
  • Length of sensor: 104.0 millimetre
  • suitable for safety functions: true
  • Number of safety-related auxiliary contacts: 1
  • Explosion protection categories for gases: none
  • Rated operating current Ie DC-13, 24 V: 3 ampere
  • Design of electrical connection: Screw connection
  • housing (according to norm): gemäß Norm
  • Rated operating current Ie DC-13, 125 V: 0.55 ampere
  • rated operating current Ie with AC-15, 24 V: 6 ampere
  • Design of the switching element: Creep circuit element
  • max. ambient temperature during operation: 85 degree_Celsius
  • min. ambient temperature during operation: -25 degree_Celsius
  • Design of interface for security oriented communications.: Without

Categories

Overview

UPC 75455494929
Item Long Description Safety position switch with separate actuator plastic enclosure, 31 mm device connection 1x (m20x 1.5) slow-action contacts 1 nc/1 no 5 directions of approach the matching separate actuator 3SE5000-0av0./-0aw. must be ordered separately
GTiN 00754554949291
Length 6.540 in
Width 2.210 in
Height 3.080 in
Country of Origin Germany
Connection Type Cable Entry Metrical
Family Brand Name Siemens
Housing Material Plastic
