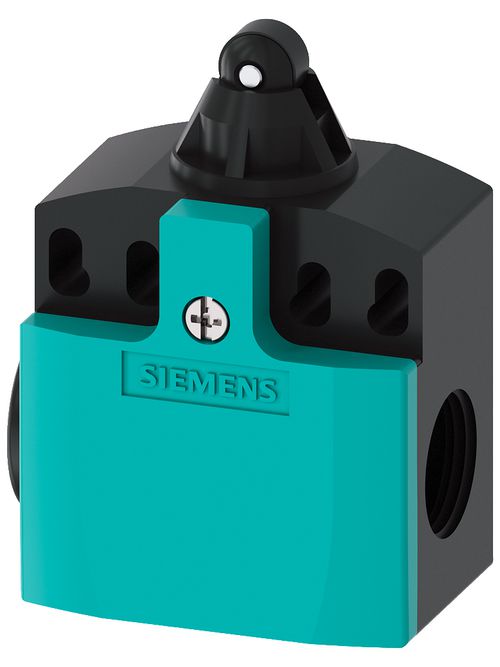

Siemens Industry 3SE52420HD03 M20 x 1.5 Plastic 1NO 1NC Snap Action Roller Plunger Limit Switch
$97.56/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3SE52420HD03
North Coast Part # 1437655

Specifications

  • Height: 4.650 IN
  • Width: 1.700 IN
  • Length: 2.640 IN
  • Gross Weight per Pack: 0.165 Lbs
  • Packaging Description: Piece
  • Country of Origin: DE
  • ROHS Indicator: DC
  • Type of electric connection: Cable entry metrical
  • Type of control element: Roller cam
  • With status indication: false
  • Number of safety auxiliary contacts: 1
  • Number of contacts as change-over contact: 1
  • Rated operation current Ie at DC-13, 24 V: 3 A
  • Ambient temperature during operating: -25.0 - 85.0 C
  • Output electronic: false
  • Switching function: Quick-break switch
  • Suitable for safety functions: true
  • Width sensor: 50.0 mm
  • Coating housing: Other
  • Number of contacts as normally closed contact: 1
  • Height of sensor: 33.0 mm
  • Number of contacts as normally open contact: 1
  • Length of sensor: 66.0 mm
  • Explosion safety category for gas: None
  • Alignment of the control element: Roller cam straight
  • Construction type housing: Cuboid
  • Explosion safety category for dust: None
  • Forced opening: true
  • Rated operation current Ie at DC-13, 125 V: 0.55 A
  • Material housing: Plastic
  • Rated operation current Ie at AC-15, 24 V: 6 A
  • Type of interface for safety communication: None
  • Degree of protection (IP): IP66/IP67
  • Switching function latching: false
  • Type of interface: None

Overview

UPC 75455495574
GTiN 00754554955742
Length 2.640 in
Width 1.700 in
Height 4.650 in
Country of Origin Germany
Connection Type Cable Entry Metrical
Family Brand Name Siemens
Housing Material Plastic
