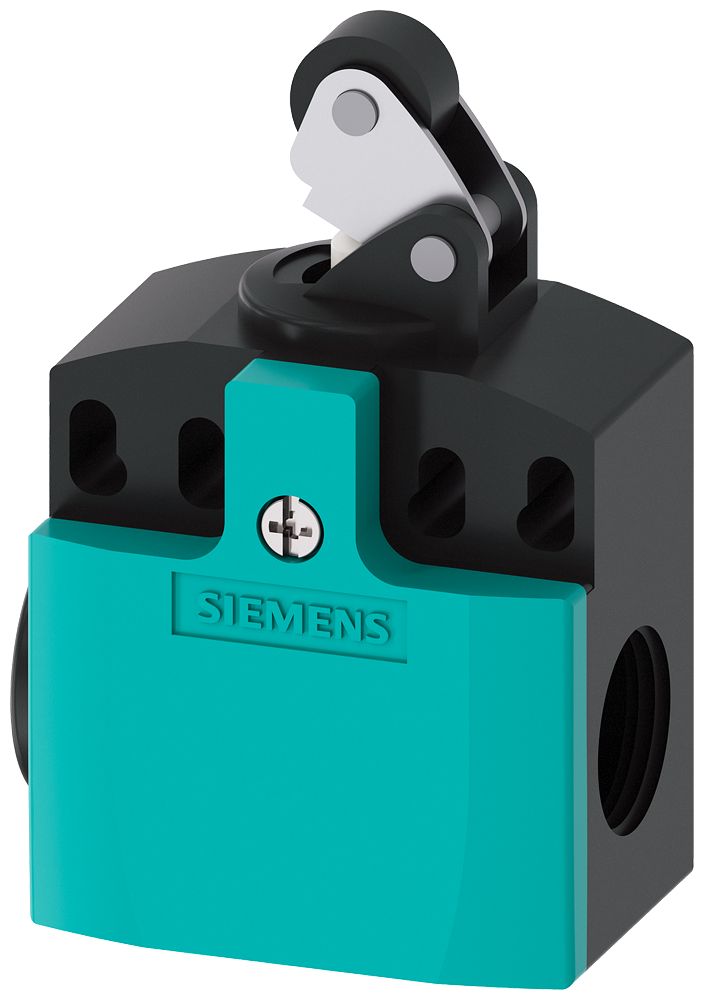

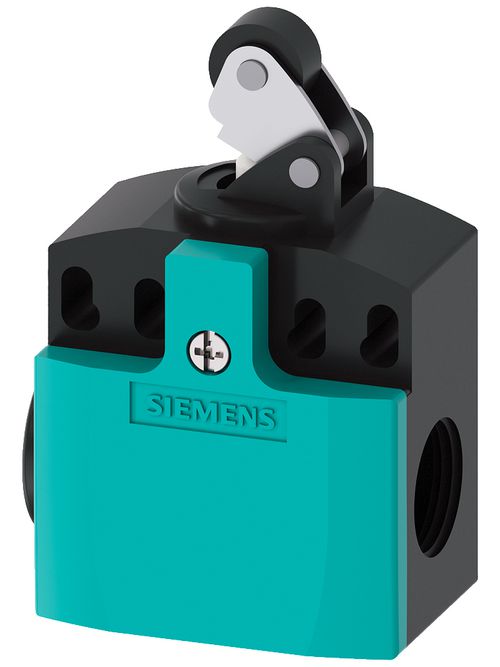

S-A 3SE52420HE10 LIMIT SW,METAL ROL
$109.14/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3SE52420HE10
North Coast Part # 1493424

Specifications

  • Height: 4.650 IN
  • Width: 1.700 IN
  • Length: 2.640 IN
  • Gross Weight per Pack: 0.176 Lbs
  • Packaging Description: Piece
  • Country of Origin: DE
  • ROHS Indicator: DC
  • Type of control element: Roller lever
  • Number of contacts as normally open contact: 1
  • Type of interface for safety communication: None
  • Explosion safety category for gas: None
  • Suitable for safety functions: true
  • Rated operation current Ie at AC-15, 24 V: 6 A
  • Explosion safety category for dust: None
  • Degree of protection (IP): IP66/IP67
  • Ambient temperature during operating: -25.0 - 85.0 C
  • Material housing: Plastic
  • Output electronic: false
  • Rated operation current Ie at DC-13, 24 V: 3 A
  • Type of electric connection: Cable entry metrical
  • Number of contacts as change-over contact: 1
  • Alignment of the control element: Roller cam straight
  • Number of safety auxiliary contacts: 1
  • Construction type housing: Cuboid
  • Length of sensor: 79.5 mm
  • Number of contacts as normally closed contact: 1
  • Switching function latching: false
  • With status indication: false
  • Height of sensor: 33.0 mm
  • Rated operation current Ie at DC-13, 125 V: 0.55 A
  • Width sensor: 50.0 mm
  • Coating housing: Other
  • Switching function: Quick-break switch
  • Type of interface: None
  • Forced opening: true

Overview

UPC 75455495575
GTiN 00754554955759
Length 2.640 in
Width 1.700 in
Height 4.650 in
Country of Origin Germany
Connection Type Cable Entry Metrical
Family Brand Name Siemens
Housing Material Plastic
