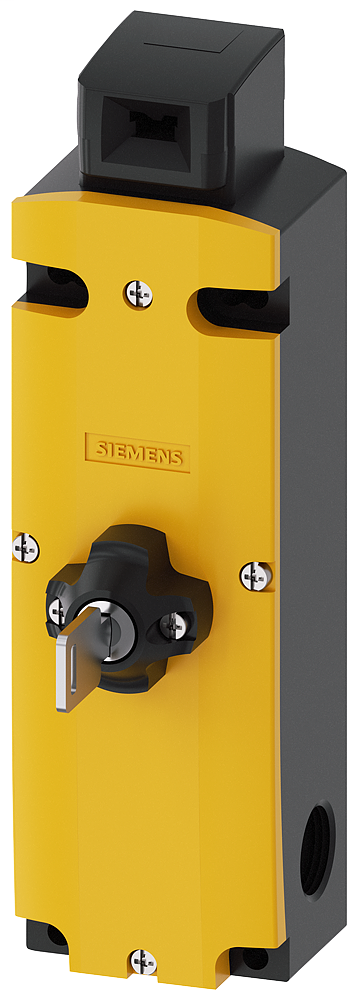

S-A 3SE5322-0SE21 INTERLOCK SW,MECH
Product image thumbnail 0
Product image thumbnail 1
$627.83/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3SE5322-0SE21
North Coast Part # 1428137

Specifications

  • Number of changers: 0
  • Protection type IP: IP67
  • Interface design: Without
  • Clamping force: 1300 newton
  • Status display present: false
  • Width of sensor: 54.0 millimetre
  • Height of sensor: 44.0 millimetre
  • Length of sensor: 185.0 millimetre
  • suitable for safety functions: true
  • Emergency unlocking device present: false
  • Type of interlock: Bias current principle
  • Explosion protected category for dusts: none
  • Number of safety-related auxiliary contacts: 4
  • Explosion protection categories for gases: none
  • Housing construction form: Special construction
  • Rated operating current Ie DC-13, 24 V: 3 ampere
  • Design of electrical connection: Screw connection
  • Rated operating current Ie DC-13, 125 V: 0.55 ampere
  • rated operating current Ie with AC-15, 24 V: 6 ampere
  • Design of the switching element: Creep circuit element
  • max. ambient temperature during operation: 60 degree_Celsius
  • min. ambient temperature during operation: -25 degree_Celsius
  • max. rated control voltage Us, magnetic drive with DC: 24 volt
  • min. rated control voltage Us, magnetic drive with DC: 24 volt
  • Design of interface for security oriented communications.: Without

Overview

UPC 75455495183
GTiN 00754554951836
Length 9.930 in
Width 5.950 in
Height 2.680 in
Country of Origin Germany
Connection Type Cable Entry Metrical
Family Brand Name Siemens
Housing Material Plastic
