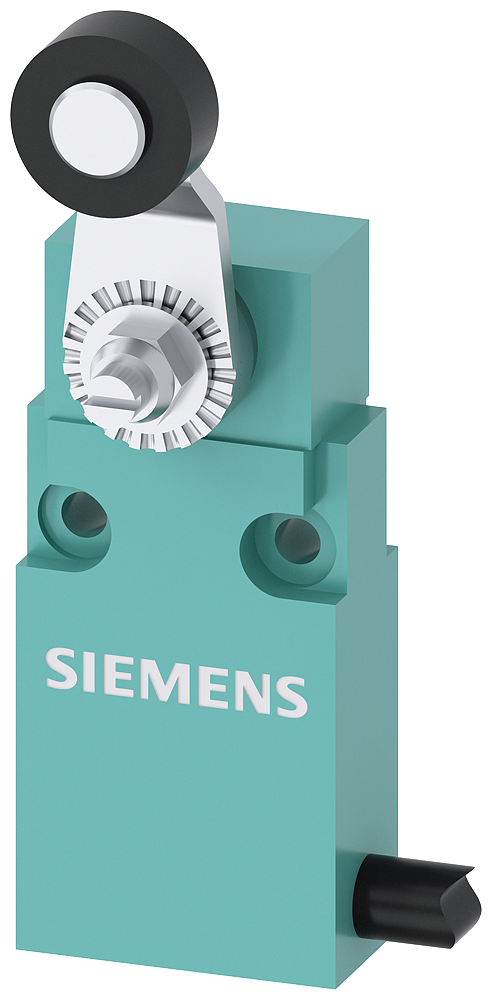

S-A 3SE54130CN201EA2 LIMSW,30MM,TWI
$170.85/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3SE54130CN201EA2
North Coast Part # 1833780

Specifications

  • Height: 1.190 IN
  • Width: 5.520 IN
  • Length: 6.300 IN
  • Gross Weight per Pack: 0.700 Lbs
  • Packaging Description: Piece
  • Country of Origin: CN
  • ROHS Indicator: DC
  • Construction type housing: Cuboid
  • Forced opening: true
  • Ambient temperature during operating: -25.0 - 85.0 C
  • Number of contacts as normally open contact: 1
  • Switching function latching: false
  • Number of contacts as change-over contact: 1
  • Alignment of the control element: Roller cam straight
  • Rated operation current Ie at DC-13, 230 V: 0.27 A
  • Rated operation current Ie at AC-15, 230 V: 3 A
  • Suitable for safety functions: true
  • Type of control element: Rotary lever
  • Length of sensor: 95.0 mm
  • Type of electric connection: Other
  • Output electronic: false
  • Explosion safety category for gas: None
  • Rated operation current Ie at AC-15, 125 V: 6 A
  • Height of sensor: 16.0 mm
  • With status indication: false
  • Switching function: Quick-break switch
  • Coating housing: Lacquered
  • Material housing: Metal
  • Number of contacts as normally closed contact: 1
  • Rated operation current Ie at DC-13, 125 V: 0.55 A
  • Type of interface: None
  • Degree of protection (IP): IP67
  • Type of interface for safety communication: None
  • Explosion safety category for dust: None
  • Width sensor: 30.0 mm
  • Number of safety auxiliary contacts: 1

Overview

UPC 04089257544
GTiN 00040892575446
Length 6.300 in
Width 5.520 in
Height 1.190 in
Country of Origin China
Connection Type Other
Family Brand Name Siemens
Housing Material Metal
