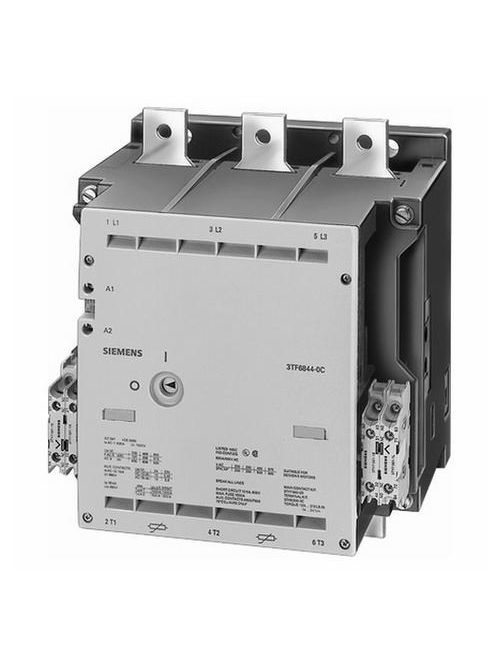

S-A 3TF6844-0CF7 CONTACTOR VAC S14
$19,749.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3TF6844-0CF7
North Coast Part # 880983

Specifications

  • Height: 14.890 IN
  • Width: 14.730 IN
  • Length: 15.910 IN
  • Gross Weight per Pack: 42.601 Lbs
  • Gross Weight per Pack 2: 42700 Lbs
  • Packaging Description: Piece
  • Pack Description: Pallet
  • Country of Origin: TR
  • ROHS Indicator: DQ
  • Rated operation current Ie at AC-4, 400 V: 300 A
  • Voltage type for actuating: AC
  • Modular version: true
  • Number of auxiliary contacts as normally open contact: 4
  • Number of normally closed contacts as main contact: 0
  • Number of auxiliary contacts as normally closed contact: 4
  • Rated operation power at AC-4, 400 V: 168.0 kW
  • Rated control supply voltage Us at AC 60HZ: 110.0 - 132.0 V
  • Rated control supply voltage Us at AC 50HZ: 110.0 - 132.0 V
  • Rated operation current Ie at AC-3, 400 V: 630 A
  • Number of main contacts as normally open contact: 3
  • Type of electrical connection of main circuit: Screw connection
  • Rated operation power at AC-3, 400 V: 335.0 kW

Overview

UPC 75455418882
GTiN 00754554188829
Length 15.910 in
Width 14.730 in
Height 14.890 in
Country of Origin Turkey
Connection Type Screw Connection
Family Brand Name Siemens
Depth 237 mm
