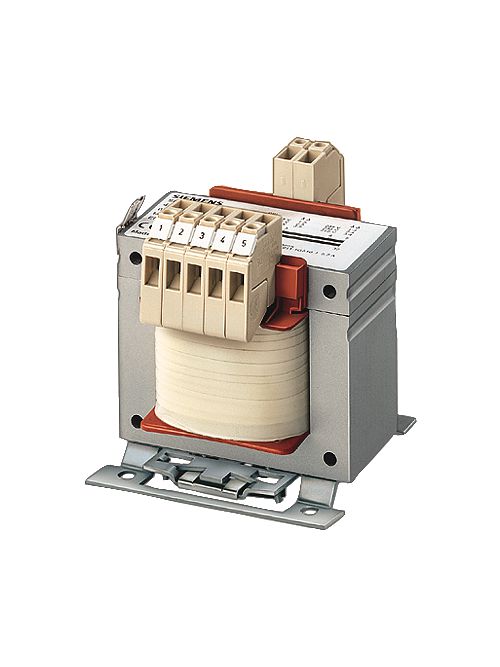

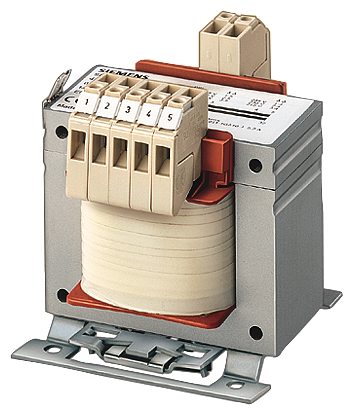

S-A 4AM3842-8ED40-0FA0 TRANSFORMER
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$841.85/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 4AM3842-8ED40-0FA0
North Coast Part # 1018461

Specifications

  • Width: 98.0 millimetre
  • Depth: 104.0 millimetre
  • Height: 106.0 millimetre
  • Protection type IP: IP00
  • min. primary voltage7: 460 volt
  • max. primary voltage 1: 600 volt
  • max. primary voltage 2: 575 volt
  • max. primary voltage 3: 550 volt
  • max. primary voltage 4: 525 volt
  • max. primary voltage 5: 500 volt
  • max. primary voltage 6: 480 volt
  • max. primary voltage 7: 460 volt
  • max. primary voltage 8: 440 volt
  • max. primary voltage 9: 415 volt
  • min. primary voltage 1: 600 volt
  • min. primary voltage 2: 575 volt
  • min. primary voltage 3: 550 volt
  • min. primary voltage 4: 525 volt
  • min. primary voltage 5: 500 volt
  • min. primary voltage 6: 480 volt
  • min. primary voltage 8: 440 volt
  • min. primary voltage 9: 415 volt
  • max. primary voltage 10: 400 volt
  • min. primary voltage 10: 400 volt
  • max. secondary voltage 1: 230 volt
  • max. secondary voltage 2: 115 volt
  • min. secondary voltage 1: 230 volt
  • min. secondary voltage 2: 115 volt
  • Rated performance: 160.0 volt ampere
  • designed as safety transformer: false
  • suitable for series installation: false
  • designed as isolating transformer: false
  • designed as compensator transformer: false
  • relative short-circuit voltage: 7.7 percent
  • suitable for circuit-board mounting: false
  • Insulation Material Class acc. to IEC 85: B

Overview

UPC 75455495093
Item Long Description TRANSFORMER SITAS PHASES 1 PN/PN(S6)(KVA) 0,16 /0,49 UPRI(V) 600-575-550-525-500- 480-460-440-415-400-240-230 USEC(V) 2X115 ISEC(A) 0,696-1,39 F(HZ) 50...60 VECTOR GR./SHIELD WNG. II0 /0 TA/ISOKL 40 /B IP00 TYPE OF TERMINALS SCREW/TAB CONNECTION INSTALLATION SCREWS/MOUNTING RAILS EN 61558-2-1, -2-2, -2-4 CONTROL CIRCUIT TRANSFORMER ISOLATION TRANSFORMER
GTiN 00754554950938
Family Brand Name Siemens
Width 0.098 m
Height 0.106 m
