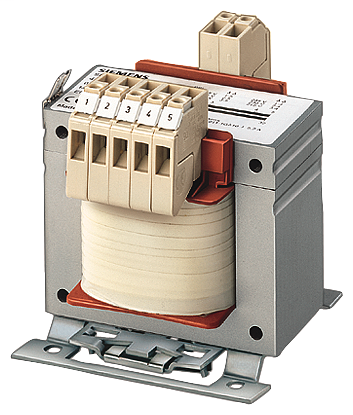

S-A 4AM4342-8EN00-0EA0 XFMR,1-PH,31
Product image thumbnail 0
Product image thumbnail 1
$1,131.18/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 4AM4342-8EN00-0EA0
North Coast Part # 543486

Specifications

  • Depth: 120.0 millimetre
  • Width: 107.0 millimetre
  • Height: 111.0 millimetre
  • Protection type IP: IP00
  • min. primary voltage7: 460 volt
  • max. primary voltage 1: 600 volt
  • max. primary voltage 2: 575 volt
  • max. primary voltage 3: 550 volt
  • max. primary voltage 4: 525 volt
  • max. primary voltage 5: 500 volt
  • max. primary voltage 6: 480 volt
  • max. primary voltage 7: 460 volt
  • max. primary voltage 8: 440 volt
  • max. primary voltage 9: 415 volt
  • min. primary voltage 1: 600 volt
  • min. primary voltage 2: 575 volt
  • min. primary voltage 3: 550 volt
  • min. primary voltage 4: 525 volt
  • min. primary voltage 5: 500 volt
  • min. primary voltage 6: 480 volt
  • min. primary voltage 8: 440 volt
  • min. primary voltage 9: 415 volt
  • max. primary voltage 10: 400 volt
  • max. secondary voltage 1: 24 volt
  • min. primary voltage 10: 400 volt
  • min. secondary voltage 1: 24 volt
  • Rated performance: 315.0 volt ampere
  • designed as safety transformer: false
  • suitable for series installation: false
  • designed as isolating transformer: false
  • designed as compensator transformer: false
  • suitable for circuit-board mounting: false
  • Insulation Material Class acc. to IEC 85: B
  • relative short-circuit voltage: 4.93 percent

Overview

UPC 75455483809
Item Long Description ISOLATING TRANSFORMER CIRCUIT TRANSFORMER SAFETY 61558-2-2, -2-6 CONTROL INSTALLATION SCREW EN CONNECTION TERMINALS SCREW/TAB TA/ISOKL 40 /B IP00 TYPE OF GR./SHIELD WNG. II0 /0 F(HZ) 50...60 VECTOR USEC(V) 24 ISEC(A) 13,1 480-460-440-415-400-240-230 UPRI(V) 600-575-550-525-500- PN/PN(S6)(KVA) 0,315 /1,12 TRANSFORMER SITAS PHASES 1
GTiN 00754554838090
Family Brand Name Siemens
Width 0.107 m
Height 0.111 m
