S-A 6AU12401AB000AA0 SIMOTION C240
Product image thumbnail 0
Product image thumbnail 1
$8,762.88/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 6AU12401AB000AA0
North Coast Part # 1342117

Specifications

  • Model: Compact
  • Redundancy: false
  • Type of memory: RAM
  • With display: false
  • IO link master: false
  • Depth: 4.645669291 inch
  • System accessory: true
  • Width: 7.874015748 inch
  • Height: 4.921259843 inch
  • Radio standard GSM: false
  • Number of relay outputs: 1
  • Radio standard GPRS: false
  • Radio standard UMTS: false
  • Number of digital inputs: 18
  • Number of digital outputs: 8
  • Rack-assembly possible: false
  • With optical interface: false
  • Front build in possible: false
  • Max. number of time switches: 0
  • Radio standard Bluetooth: false
  • Number of interfaces PROFINET: 1
  • Number of HW-interfaces RS-232: 0
  • Number of HW-interfaces RS-422: 0
  • Number of HW-interfaces RS-485: 2
  • Radio standard WLAN 802.11: false
  • Supporting protocol for ASI: false
  • Supporting protocol for CAN: false
  • Supporting protocol for KNX: false
  • Supporting protocol for LON: false
  • Voltage type of supply voltage: DC
  • Number of HW-interfaces Wireless: 0
  • Number of HW-interfaces parallel: 0
  • Supporting protocol for MODBUS: false
  • Supporting protocol for SERCOS: false
  • Supporting protocol for SUCONET: false
  • Supporting protocol for INTERBUS: false
  • Appendant operation agent (Ex ia): false
  • Appendant operation agent (Ex ib): false
  • Supporting protocol for DeviceNet: false
  • Supporting protocol for EtherNet/IP: false
  • Supporting protocol for SafetyBUS p: false
  • Supporting protocol for Data-Highway: false
  • Supporting protocol for PROFINET CBA: false
  • Number of HW-interfaces industrial Ethernet: 1
  • Supporting protocol for INTERBUS-Safety: false
  • Supporting protocol for DeviceNet Safety: false
  • Supporting protocol for other bus systems: true
  • Supporting protocol for Foundation Fieldbus: false
  • Supporting protocol for AS-Interface Safety at Work: false

Overview

UPC 66264348182

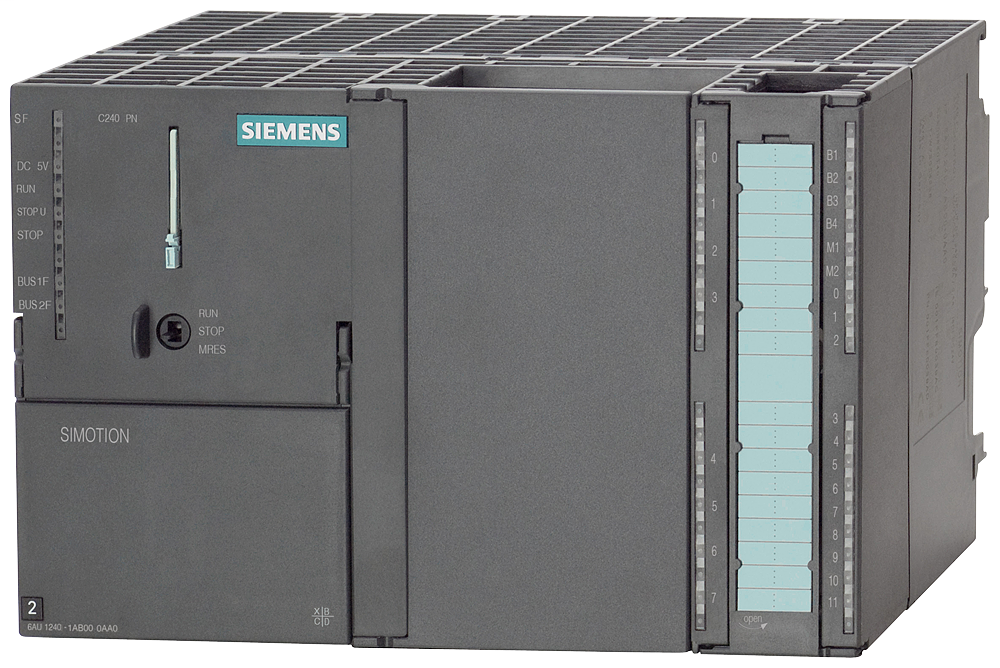

Item Long Description SIMOTION motion controller c240 pn for PROFINET- and PROFIBUS- drives onboard peripherals 18di/8do (requires v4.1 sp2 hf3/4)
GTiN 00662643481822
Length 5.000 in
Width 7.874 in
Depth 4.645 in
Height 4.921 in
Country of Origin Germany
Family Brand Name Siemens
Number of Inputs 18
