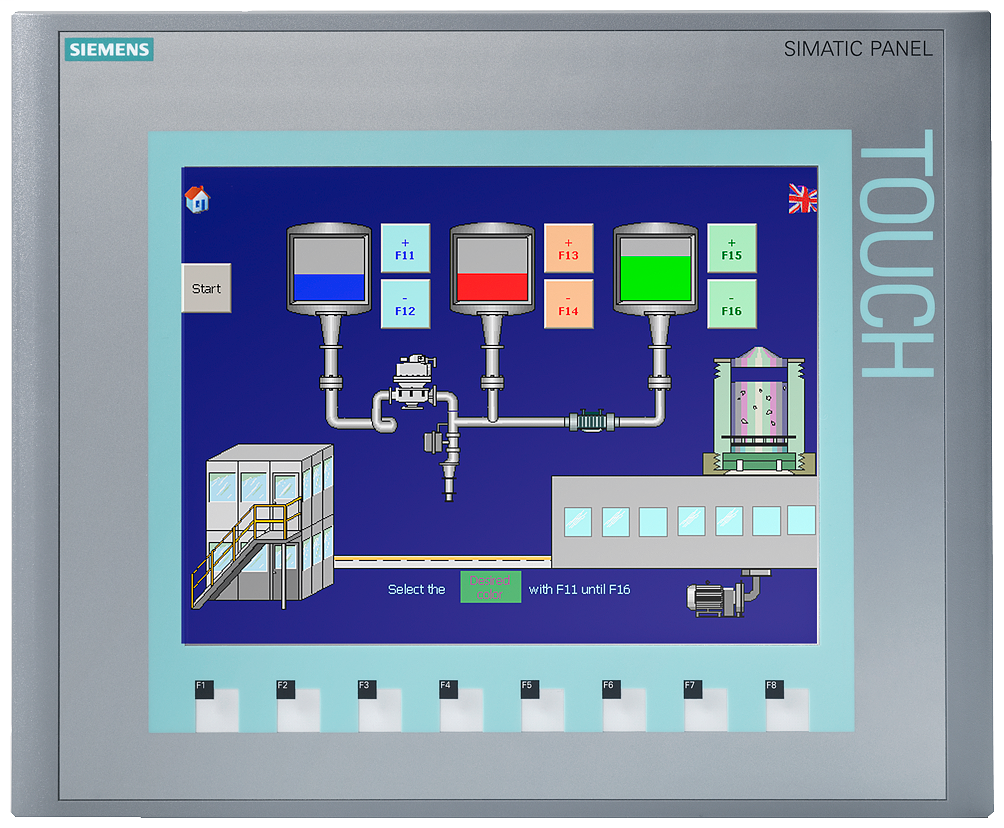

Siemens Industry 6AV66470AF113AX0 10 Inch TFT Display Basic Panel Key and Touch Operation Human Machine Interface
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 6AV66470AF113AX0
North Coast Part # 1017760


  • With recipes: true
  • Type of display: TFT
  • IO link master: false
  • Radio standard GSM: false
  • With SW interfaces: false
  • With colour display: true
  • Radio standard GPRS: false
  • Radio standard UMTS: false
  • With printer output: false
  • Number of system buttons: 0
  • With numeric keyboard: true
  • Number of buttons with LED: 0
  • Number of online languages: 5
  • Number of password levels: 50
  • Rail mounting possible: false
  • With message indication: true
  • Number of HW-interfaces USB: 0
  • Built-in depth: 2.362204724 inch
  • Number of pixels, vertical: 480
  • Radio standard Bluetooth: false
  • Number of HW-interfaces other: 0
  • Number of interfaces PROFINET: 1
  • Number of HW-interfaces RS-232: 0
  • Number of HW-interfaces RS-422: 0
  • Number of HW-interfaces RS-485: 0
  • Number of pixels, horizontal: 640
  • Radio standard WLAN 802.11: false
  • With alpha numeric keyboard: true
  • Operation temperature: 32.0 °F
  • Supporting protocol for ASI: false
  • Supporting protocol for CAN: false
  • Supporting protocol for KNX: false
  • Supporting protocol for LON: false
  • Voltage type of supply voltage: DC
  • Number of HW-interfaces Wireless: 0
  • Number of HW-interfaces parallel: 0
  • Suitable for safety functions: false
  • Supporting protocol for MODBUS: true
  • Supporting protocol for TCP/IP: true
  • Wall mounting/direct mounting: false
  • Width of the front: 13.188976378 inch
  • Height of the front: 10.826771654 inch
  • Number of HW-interfaces serial TTY: 0
  • Number of colours of the display: 256
  • Supporting protocol for SERCOS: false
  • Supporting protocol for SUCONET: false
  • Supporting protocol for INTERBUS: false
  • Supporting protocol for PROFIBUS: false
  • Supporting protocol for DeviceNet: false
  • Supporting protocol for PROFIsafe: false
  • Supporting protocol for EtherNet/IP: true
  • Supporting protocol for PROFINET IO: false
  • Supporting protocol for SafetyBUS p: false
  • Degree of protection (IP), front side: IP65
  • Number of function buttons, programmable: 8
  • Supporting protocol for Data-Highway: false
  • Supporting protocol for PROFINET CBA: false
  • Process default value (input) possible: true
  • Number of HW-interfaces industrial Ethernet: 1
  • Supporting protocol for INTERBUS-Safety: false
  • Additional software components, loadable: false
  • Number of grey-scales/blue-scales of display: 0
  • Supporting protocol for DeviceNet Safety: false
  • Supporting protocol for other bus systems: false
  • Supporting protocol for Foundation Fieldbus: false
  • Process value representation (output) possible: true
  • With message system (incl. buffer and confirmation): true
  • Supporting protocol for AS-Interface Safety at Work: false


GTiN 00662643345711
Type Basic Panel,Key And Touch Operation
Standard CE,CULus,KC,RCM
Family Brand Name Siemens
Product UPC 66264334571
