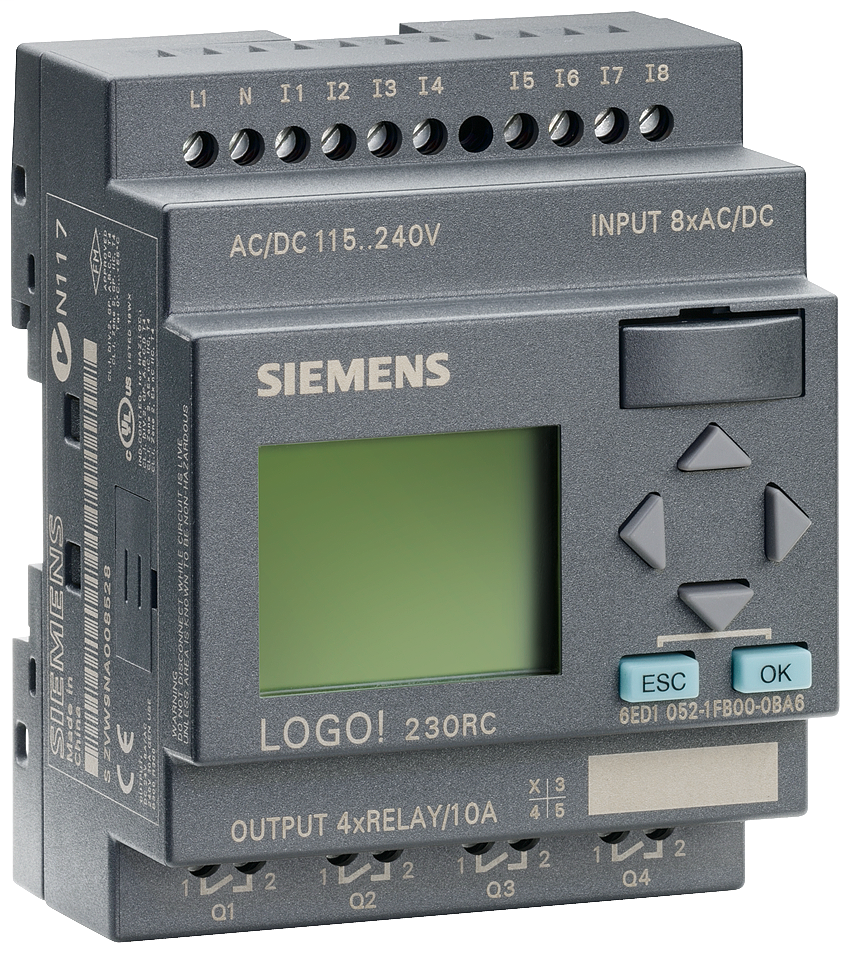

Siemens Industry 6ED10521FB000BA6 72 x 55 x 90 mm 115/230 VAC/VDC 8-Input/4-Output PLC Module
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$463.68/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 6ED10521FB000BA6
North Coast Part # 547689

Specifications

  • Net Weight in Kg: 0.246
  • Supplier: Siemens AG
  • Order number: 6ED1052-1FB00-0BA6
  • Ambient temperature during operation maximum [°C]: 55
  • Ambient temperature during operation minimum [°C]: 0
  • assembly: on 35 mm DIN rail, 4 spacing units wide
  • Certificate of suitability CE marking: yes
  • Certificate of suitability CSA-approval: yes
  • Certificate of suitability FM registration: yes
  • Certificate of suitability Shipbuilding approval: yes
  • Certificate of suitability UL approval: yes
  • Consumed current maximum [mA]: 40
  • Depth [mm]: 55
  • EMC emitted interference acc. to EN 55011, Class B: yes
  • Equipment marking acc. to DIN EN 81346-2: K
  • Explosion protection marking for intrinsic safety of related equipment EEx ia: no
  • Explosion protection marking for intrinsic safety of related equipment EEx ib: no
  • Height [mm]: 90
  • Mounting type front mounting: yes
  • Mounting type rail mounting: yes
  • Number of analog inputs: 0
  • Number of analog outputs: 0
  • Number of digital inputs: 8
  • Number of digital outputs: 4
  • Number of digital outputs Note: Relays
  • Number of interfaces acc. to 20 mA (TTY): 0
  • Number of interfaces acc. to Industrial Ethernet: 0
  • Number of interfaces acc. to PROFINET: 0
  • Number of interfaces acc. to RS 232: 1
  • Number of interfaces acc. to RS 422: 0
  • Number of interfaces acc. to RS 485: 0
  • Number of interfaces acc. to USB: 0
  • Number of interfaces other: 0
  • Number of interfaces parallel: 0
  • Number of timers: 8
  • Power reserve [h]: 80
  • product brandname: LOGO!
  • Product category: Basic module
  • Product category central device: yes
  • Product category expansion unit: no
  • Product component display: yes
  • Product component Integrated Time switch: yes
  • Product component optical interface: no
  • Product component Relay output: yes
  • Product family: LOGO!
  • Product function at the digital outputs Short circuit protection: no
  • Product function at the digital outputs Short circuit protection Note: external fusing necessary
  • Product function expandable: yes
  • Product quality conformity acc. to IEC 61131-3: yes
  • Protocol is supported AS-interface protocol: no
  • Protocol is supported CAN protocol: no
  • Protocol is supported data highway protocol: no
  • Protocol is supported DeviceNet protocol: no
  • Protocol is supported EIB/KNX protocol: no
  • Protocol is supported INTERBUS protocol: no
  • Protocol is supported LON protocol: no
  • Protocol is supported MODBUS protocol: no
  • Protocol is supported other protocols: no
  • Protocol is supported PROFIBUS protocol: no
  • Protocol is supported PROFINET IO protocol: no
  • Protocol is supported SERCOS protocol: no
  • Protocol is supported SUCONET protocol: no
  • Protocol is supported TCP/IP: no
  • Suitability for use safety-related function: no
  • Supply voltage at AC Rated value 115 V: yes
  • Supply voltage at AC Rated value 230 V: yes
  • Supply voltage at AC rated value maximum [V]: 265
  • Supply voltage at AC rated value minimum [V]: 85
  • Supply voltage at DC Rated value 115 V: yes
  • Supply voltage at DC Rated value 230 V: yes
  • Supply voltage at DC rated value maximum [V]: 253
  • Supply voltage at DC rated value minimum [V]: 100
  • Supply voltage frequency maximum [Hz]: 63
  • Supply voltage frequency minimum [Hz]: 47
  • Switching capacity current [A]: 10
  • Switching capacity current of the contacts with inductive load maximum [A]: 3
  • Switching capacity current of the contacts with resistive load maximum [A]: 10
  • Type of voltage at digital input: AC/DC
  • Type of voltage of the supply voltage: AC/DC
  • Width [mm]: 72

Product Data

Delivery Information

  • Export Control Regulations: AL : N / ECCN : EAR99H
  • Standard lead time ex-works: 1 Day/Days
  • Net Weight (lb): 0.542 lb
  • Product Dimensions (W x L x H): Not available
  • Packaging Dimension: 3,268 x 3,937 x 2,953
  • Package size unit of measure: in
  • Quantity Unit: 1 Piece
  • Packaging Quantity: 1

Additional Product Information

  • EAN: 6940408100169
  • UPC: 662643399868
  • Commodity Code: 85371091
  • LKZ_FDB/ CatalogID: ST9.LOGO!
  • Product Group: 4300
  • Country of origin: China
  • RoHS Compliance: Since: 08/07/2008
  • Returnable: Yes

Overview

UPC 66264339986
GTiN 00662643399868
Width 72 mm
Type LOGO! 230RC or similar
Depth 55 mm
Height 90 mm
Temperature Rating 55 Celsius
Family Brand Name Siemens
Net Weight 0.542 lb
Max Operating Temperature 55 C
Output relay max
Min Operating Temperature 0 C
Max Voltage 253 V
Sub Brand LOGO!
Voltage null
