Siemens Industry 6EP13225BA10 120/230 VAC Input 12 VDC 6.5 Amp Output Stabilized Power Supply
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$186.82/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 6EP13225BA10
North Coast Part # 1014799

Specifications

  • stabilized: true
  • Width: 53.0 millimetre
  • Depth: 100.0 millimetre
  • Height: 80.0 millimetre
  • Power output: 78.0 watt
  • Net weight: 0.0 kilogram
  • Protection type IP: IP20
  • Supply voltage type: AC/DC
  • Product name: SITOP PSU100C
  • Wall assembly possible: false
  • max. 1. output voltage: 12 volt
  • min. 1. output voltage: 12 volt
  • Output voltage adjustable: true
  • max. output current 1: 6.5 ampere
  • Installation width: 53.0 millimetre
  • power consumption: 12.5 volt ampere
  • Installation height: 180.0 millimetre
  • Bearing track assembly possible: true
  • designed as short-circuit-proof: true
  • suitable for series installation: true
  • Direct assembly/mounting possible: false
  • Output voltage for SPC is regulated: true
  • nominal value 1. output voltage: 12.0 volt
  • nominal value output current 1: 7.0 ampere
  • max. rated supply voltage with AC 50 Hz: 230 volt
  • max. rated supply voltage with AC 60 Hz: 100 volt
  • min. rated supply voltage with AC 50 Hz: 230 volt
  • min. rated supply voltage with AC 60 Hz: 100 volt
  • Design of electrical connection: Screw connection
  • Power loss, static, current-independent [Pls]: 12.5 watt
  • description of product type: Power supply SITOP PSU100C

Categories

Overview

UPC 04089278941

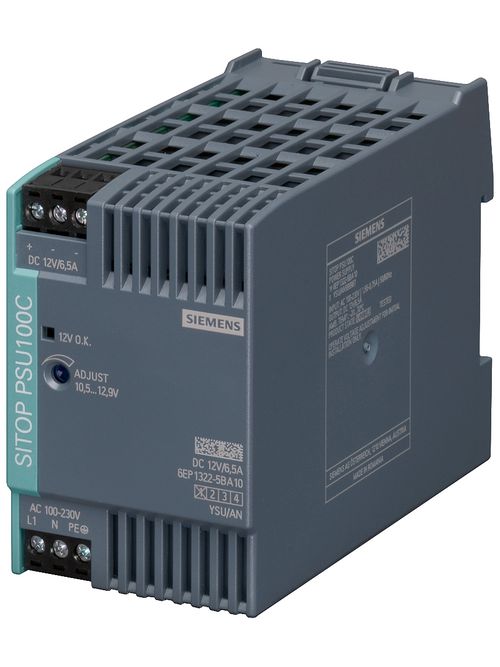

Item Long Description SITOP PSU100C 12 V/6.5 A STABILIZED POWER SUPPLY INPUT AC 120-230 V (DC 110-300 V) OUTPUT DC 12 V/6.5 A
GTiN 00040892789416
Voltage 12 Volt
Frequency 47-63 Hz
Family Brand Name Siemens
Number of Phases 1 Phase
IP Rating IP20
Width 52.5 mm
Depth 100.0 mm
Height 80.0 mm
