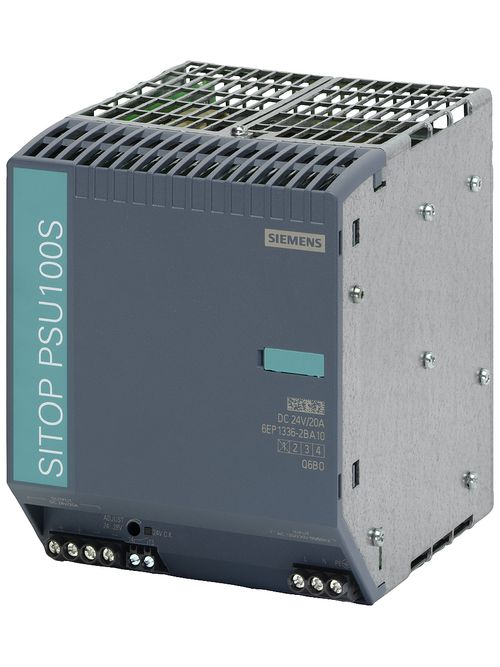

S-A 6EP13362BA10 POWER SUPPLY_120/2
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$551.04/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 6EP13362BA10
North Coast Part # 878436

Specifications

  • stabilized: true
  • Depth: 150.0 millimetre
  • Width: 115.0 millimetre
  • Height: 145.0 millimetre
  • Net weight: 2.0 kilogram
  • Power output: 480.0 watt
  • Supply voltage type: AC
  • Protection type IP: IP20
  • Product name: SITOP PSU100S
  • Wall assembly possible: false
  • max. 1. output voltage: 24 volt
  • min. 1. output voltage: 24 volt
  • Output voltage adjustable: true
  • max. output current 1: 20 ampere
  • power consumption: 53.0 volt ampere
  • Installation width: 120.0 millimetre
  • Installation height: 245.0 millimetre
  • Bearing track assembly possible: true
  • designed as short-circuit-proof: true
  • suitable for series installation: true
  • Direct assembly/mounting possible: false
  • Output voltage for SPC is regulated: true
  • nominal value 1. output voltage: 24.0 volt
  • nominal value output current 1: 20.0 ampere
  • max. rated supply voltage with AC 50 Hz: 230 volt
  • max. rated supply voltage with AC 60 Hz: 120 volt
  • min. rated supply voltage with AC 50 Hz: 230 volt
  • min. rated supply voltage with AC 60 Hz: 120 volt
  • Design of electrical connection: Screw connection
  • Power loss, static, current-independent [Pls]: 53 watt
  • description of product type: Power supply SITOP smart

Categories

Overview

UPC 04089293270
Item Long Description SITOP PSU100S 24 V/20 A 6EP1336-IP20
GTiN 00040892932706
Voltage 24 Volt
Type Single Phase
Terminal Type Screw
Applications For Machine and Plant Construction
Mounting Type DIN Rail, Panel
Standard UL 508,CSA C22.2 No. 60950-1,File E197259,CE,CSA,UL 60950-1,CB Approval,CSA C22.2 No. 107.1,UL
Frequency 50/60 Hz
Wattage 480 Watt
Efficiency 0.9
Input Voltage 0 - 120 VAC at 50 Hz, 0 - 230 VAC at 60 Hz
Temperature Rating 0 - 70 C
Family Brand Name Siemens
Number of Phases 1 Phase
Power Rating 480 W
Amperage 20 Amp
Blade Dimensions 115 mm W x 150 mm D x 145 mm H
IP Rating IP20
Output Voltage 0 - 24 VDC
Width 115.0 mm
Depth 150.0 mm
Height 145.0 mm
