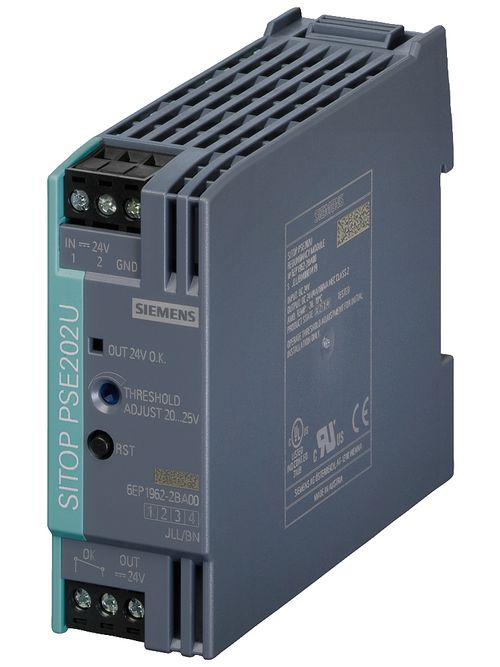

Siemens Industry 6EP19622BA00 24 VDC Din Rail Mount Redundancy Module
Product image thumbnail 0
Product image thumbnail 1
$237.89/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 6EP19622BA00
North Coast Part # 878433

Specifications

  • Width: 30.0 millimetre
  • Depth: 100.0 millimetre
  • Height: 80.0 millimetre
  • Net weight: 0.0 kilogram
  • Supply voltage type: DC
  • Protection type IP: IP20
  • Product name: SITOP PSE202U
  • Wall assembly possible: false
  • max. 1. output voltage: 24 volt
  • min. 1. output voltage: 24 volt
  • Output voltage adjustable: false
  • max. output current 1: 3.5 ampere
  • power consumption: 5.0 volt ampere
  • Installation width: 30.0 millimetre
  • Installation height: 180.0 millimetre
  • Bearing track assembly possible: true
  • suitable for series installation: true
  • Direct assembly/mounting possible: false
  • Output voltage for SPC is regulated: true
  • max. rated supply voltage with DC: 24 volt
  • min. rated supply voltage with DC: 24 volt
  • nominal value 1. output voltage: 24.0 volt
  • nominal value output current 1: 4.0 ampere
  • description of product type: Redundancy module
  • Design of electrical connection: Screw connection
  • Power loss, static, current-independent [Pls]: 5 watt

Overview

UPC 04089278940
GTiN 00040892789409
Voltage 24 Volt
Family Brand Name Siemens
IP Rating IP20
Width 30.0 mm
Depth 100.0 mm
Height 80.0 mm
