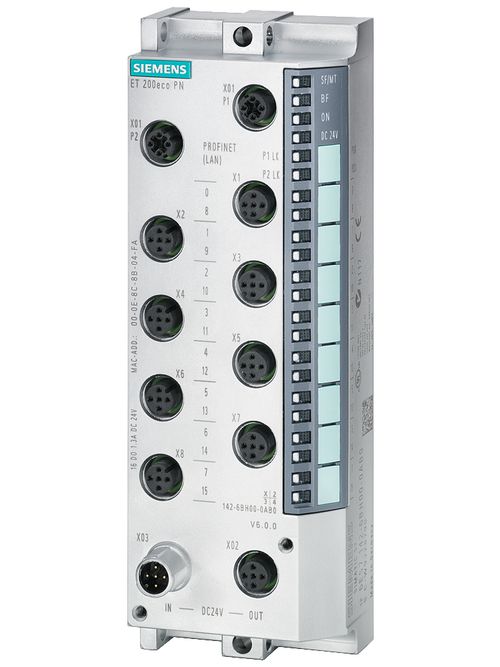

S-A 6ES71476BG000AB0 ET200ECO PN, 8
$947.52/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 6ES71476BG000AB0
North Coast Part # 1342130

Specifications

  • Number of digital inputs: 8
  • Number of digital outputs: 8
  • Number of HW-interfaces industrial Ethernet: 0
  • Number of HW-interfaces RS-232: 0
  • Number of HW-interfaces RS-422: 0
  • Number of HW-interfaces RS-485: 0
  • Number of HW-interfaces serial TTY: 0
  • Number of HW-interfaces USB: 0
  • Number of HW-interfaces parallel: 0
  • Number of HW-interfaces other: 0
  • Number of interfaces PROFINET: 1
  • Number of HW-interfaces Wireless: 0
  • Input current at signal 1: 7.0 mA
  • Time delay at signal exchange: 1.2 ms
  • Time delay at signal exchange: 4.8 ms
  • Output current: 1.3 A
  • Permitted voltage at output: 0.0 V
  • Width: 60.0 mm
  • Depth: 49.0 mm
  • Short-circuit protection, outputs available: true
  • Rail mounting possible: true
  • System accessory: true
  • Front built-in possible: true
  • Wall mounting/direct mounting: true
  • Supporting protocol for PROFINET IO: true
  • Supply voltage DC: 20.4 V
  • Supply voltage DC: 28.8 V
  • Permitted voltage at output: 28.8 V
  • Permitted voltage at input: -3.0 V
  • Permitted voltage at input: 30.0 V
  • Digital inputs configurable: true
  • Digital outputs configurable: true
  • Height: 175.0 mm
  • Suitable for safety functions: false
  • Supporting protocol for LON: false
  • With optical interface: false
  • Supporting protocol for TCP/IP: false
  • Supporting protocol for ASI: false
  • Supporting protocol for PROFIBUS: false
  • Supporting protocol for CAN: false
  • Supporting protocol for INTERBUS: false
  • Supporting protocol for KNX: false
  • Supporting protocol for Modbus: false
  • Supporting protocol for Data-Highway: false
  • Supporting protocol for DeviceNet: false
  • Supporting protocol for SUCONET: false
  • Supporting protocol for other bus systems: false
  • Fieldbus connection over separate bus coupler possible: false
  • Appendant operation agent (Ex ia): false
  • Appendant operation agent (Ex ib): false
  • Supporting protocol for SERCOS: false
  • Supporting protocol for INTERBUS-Safety: false
  • Rack-assembly possible: false
  • Radio standard Bluetooth: false
  • Radio standard Wi-Fi 802.11: false
  • IO link master: false
  • Supporting protocol for AS-Interface Safety at Work: false
  • Supporting protocol for DeviceNet Safety: false
  • Supporting protocol for EtherNet/IP: false
  • Supporting protocol for Foundation Fieldbus: false
  • Supporting protocol for PROFINET CBA: false
  • Supporting protocol for PROFIsafe: false
  • Supporting protocol for SafetyBUS p: false
  • Radio standard GPRS: false
  • Radio standard GSM: false
  • Radio standard UMTS: false
  • Voltage type of supply voltage: DC
  • Type of voltage (input voltage): DC
  • Type of digital output: Other
  • Type of electric connection: Plug-in connection
  • Explosion safety category for gas: ATEX gas-ex-protection, Cat. 3G
  • Explosion safety category for dust: ATEX dust-ex-protection, Cat. 3D
  • Degree of protection (IP): IP65/IP67
  • Type of output voltage: DC

Overview

UPC 04089254967
GTiN 00040892549676
Length 7.880 in
Width 60.0 mm
Depth 49.0 mm
Height 175.0 mm
Country of Origin Germany
Connection Type Plug-in Connection
Family Brand Name Siemens
Number of Inputs 8
