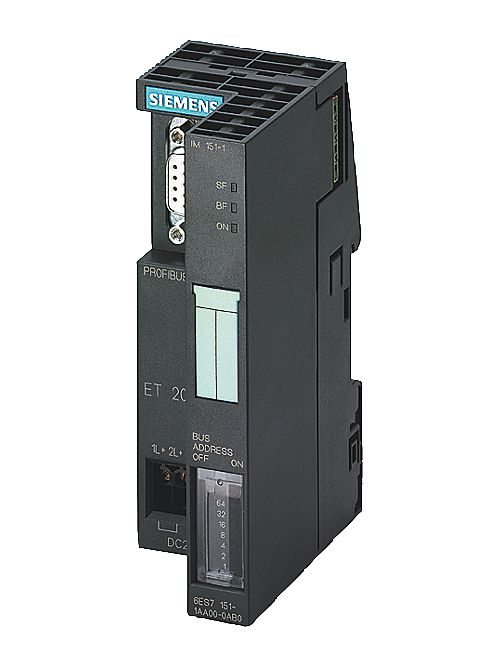

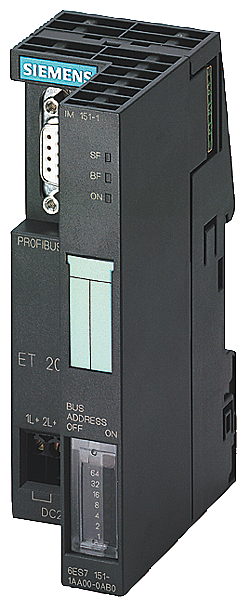

S-A 6ES71511BA020AB0 ET200S, INTERF
$826.56/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 6ES71511BA020AB0
North Coast Part # 552112

Specifications

  • Width: 45.0 mm
  • Depth: 75.0 mm
  • Supporting protocol for PROFIBUS: true
  • With potential separation: true
  • Rail mounting possible: true
  • System accessory: true
  • Front built-in possible: true
  • Rack-assembly possible: true
  • Supporting protocol for PROFIsafe: true
  • Supply voltage DC: 20.4 V
  • Supply voltage DC: 28.8 V
  • Height: 119.5 mm
  • Suitable for safety functions: false
  • Supporting protocol for LON: false
  • Supporting protocol for TCP/IP: false
  • Supporting protocol for ASI: false
  • Supporting protocol for CAN: false
  • Supporting protocol for INTERBUS: false
  • Supporting protocol for KNX: false
  • Supporting protocol for Modbus: false
  • Supporting protocol for Data-Highway: false
  • Supporting protocol for DeviceNet: false
  • Supporting protocol for SUCONET: false
  • Supporting protocol for other bus systems: false
  • Fieldbus connection over separate bus coupler possible: false
  • Appendant operation agent (Ex ia): false
  • Appendant operation agent (Ex ib): false
  • Supporting protocol for SERCOS: false
  • Supporting protocol for INTERBUS-Safety: false
  • Wall mounting/direct mounting: false
  • Radio standard Bluetooth: false
  • Radio standard Wi-Fi 802.11: false
  • IO link master: false
  • Supporting protocol for AS-Interface Safety at Work: false
  • Supporting protocol for DeviceNet Safety: false
  • Supporting protocol for EtherNet/IP: false
  • Supporting protocol for Foundation Fieldbus: false
  • Supporting protocol for PROFINET CBA: false
  • Supporting protocol for PROFINET IO: false
  • Supporting protocol for SafetyBUS p: false
  • Radio standard GPRS: false
  • Radio standard GSM: false
  • Radio standard UMTS: false
  • Voltage type of supply voltage: DC
  • Explosion safety category for gas: ATEX gas-ex-protection, Cat. 3G
  • Explosion safety category for dust: None
  • Degree of protection (IP): IP20

Overview

UPC 66264322355
GTiN 00662643223552
Length 5.120 in
Width 45.0 mm
Operating Temperature 0 to 60 Celsius
Type High Feature
Applications Terminating Module Data Volume
Depth 75.0 mm
Height 119.5 mm
Country of Origin Germany
Temperature Rating 0 - 60 C
Family Brand Name Siemens
Output 80 mA
Power Supply Mains buffering, min. at 20 ms
Blade Dimensions 75 mm L x 45 mm W x 119.5 mm H
Output Signal 80 mA
Sub Brand Simatic
