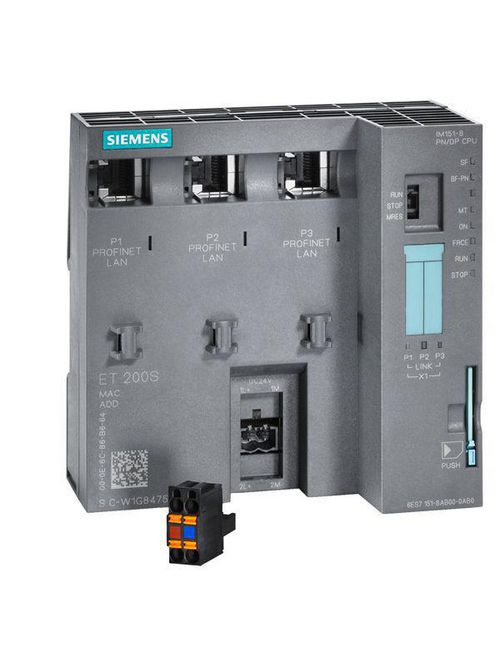

S-A 6ES71518AB010AB0 ET200S, IM151-
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,794.24/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 6ES71518AB010AB0
North Coast Part # 1550456

Specifications

  • Number of slots: 63
  • IO link master: false
  • Depth: 2.952755906 inch
  • System accessory: true
  • Width: 4.724409449 inch
  • Height: 4.704724409 inch
  • Radio standard GSM: false
  • Radio standard GPRS: false
  • Radio standard UMTS: false
  • Rail mounting possible: true
  • With optical interface: false
  • Number of HW-interfaces USB: 0
  • Degree of protection (IP): IP20
  • Radio standard Bluetooth: false
  • With potential separation: true
  • Number of HW-interfaces other: 0
  • Number of interfaces PROFINET: 3
  • Number of HW-interfaces RS-232: 0
  • Number of HW-interfaces RS-422: 0
  • Number of HW-interfaces RS-485: 0
  • Radio standard WLAN 802.11: false
  • Supporting protocol for ASI: false
  • Supporting protocol for CAN: false
  • Supporting protocol for KNX: false
  • Supporting protocol for LON: false
  • With integrated power supply: true
  • Number of HW-interfaces Wireless: 0
  • Number of HW-interfaces parallel: 0
  • Type of voltage (input voltage): DC
  • Wall mounting/direct mounting: true
  • Suitable for safety functions: false
  • Supporting protocol for MODBUS: true
  • With pluggable modules, others: true
  • Number of HW-interfaces serial TTY: 0
  • Supporting protocol for SERCOS: false
  • Supporting protocol for SUCONET: false
  • Supporting protocol for INTERBUS: false
  • Supporting protocol for PROFIBUS: false
  • Appendant operation agent (Ex ia): false
  • Appendant operation agent (Ex ib): false
  • Explosion safety category for dust: None
  • Supporting protocol for DeviceNet: false
  • Supporting protocol for PROFIsafe: false
  • Supporting protocol for PROFINET IO: true
  • With pluggable modules, digital I/O: true
  • Supporting protocol for EtherNet/IP: false
  • Supporting protocol for PROFINET CBA: true
  • Supporting protocol for SafetyBUS p: false
  • With pluggable modules, analogue I/O: true
  • Supporting protocol for Data-Highway: false
  • With pluggable modules, central modules: true
  • Number of HW-interfaces industrial Ethernet: 1
  • Supporting protocol for INTERBUS-Safety: false
  • Supporting protocol for DeviceNet Safety: false
  • Supporting protocol for other bus systems: true
  • Supporting protocol for Foundation Fieldbus: false
  • With pluggable modules, communication modules: true
  • With bus coupler for modular station connection: true
  • Supporting protocol for AS-Interface Safety at Work: false
  • Type of electric connection: Screw-/spring clamp connection
  • Fieldbus connection over separate bus coupler possible: true
  • With pluggable modules, function and technology modules: true
  • Explosion safety category for gas: ATEX gas-ex-protection, Cat. 3G

Categories

Overview

UPC 04089269282
Item Long Description SIMATIC dp, im151-8 pn/dp cpu for et200s, 192 kb working memory, int. PROFINET interface (with three rj45 ports) as io-controler, w/o battery mmc required
GTiN 00040892692822
Length 5.910 in
Width 4.724 in
Mounting Type DIN Rail
Depth 2.952 in
Height 4.704 in
Country of Origin Germany
Connection Type Screw-/spring Clamp Connection
Family Brand Name Siemens
Power Consumption 5.5 W
Blade Dimensions 120 mm W x 75 mm D x 119.5 mm H
Memory 192 KB
Sub Brand Simatic
Voltage 20.4-28.8 VDC
