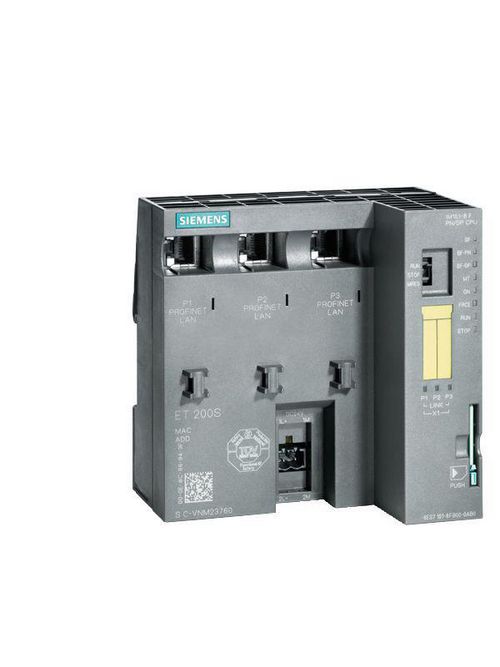

S-A 6ES71518FB010AB0 ET200S, IM151-

Specifications

• Number of slots: 63
• IO link master: false
• Depth: 2.952755906 inch
• System accessory: true
• Width: 4.724409449 inch
• Height: 4.704724409 inch
• Output voltage at DC: V
• Radio standard GSM: false
• Max. output current DC: A
• Radio standard GPRS: false
• Radio standard UMTS: false
• Rail mounting possible: true
• Input voltage at AC 50 Hz: V
• Input voltage at AC 60 Hz: V
• SIL according to IEC 61508: 3
• With optical interface: false
• Number of HW-interfaces USB: 0
• Output voltage at AC 50 Hz: V
• Output voltage at AC 60 Hz: V
• Degree of protection (IP): IP20
• Max. input current AC 50 Hz: A
• Max. input current AC 60 Hz: A
• Radio standard Bluetooth: false
• With potential separation: true
• Max. output current AC 50 Hz: A
• Max. output current AC 60 Hz: A
• Number of HW-interfaces other: 0
• Number of interfaces PROFINET: 3
• Category according to EN 954-1: 4
• Number of HW-interfaces RS-232: 0
• Number of HW-interfaces RS-422: 0
• Number of HW-interfaces RS-485: 0
• Radio standard WLAN 802.11: false
• Supporting protocol for ASI: false
• Supporting protocol for CAN: false
• Supporting protocol for KNX: false
• Supporting protocol for LON: false
• Number of HW-interfaces Wireless: 0
• Number of HW-interfaces parallel: 0
• Suitable for safety functions: true
• Type of voltage (input voltage): DC
• Wall mounting/direct mounting: true
• With integrated power supply: false
• Supporting protocol for MODBUS: true
• With pluggable modules, others: true
• Number of HW-interfaces serial TTY: 0
• Supporting protocol for SERCOS: false
• Supporting protocol for SUCONET: false
• Supporting protocol for INTERBUS: false
• Supporting protocol for PROFIBUS: false
• Supporting protocol for PROFIsafe: true
• Appendant operation agent (Ex ia): false
• Appendant operation agent (Ex ib): false
• Explosion safety category for dust: None
• Supporting protocol for DeviceNet: false
• Supporting protocol for PROFINET IO: true
• With pluggable modules, digital I/O: true
• Supporting protocol for EtherNet/IP: false
• Supporting protocol for PROFINET CBA: true
• Supporting protocol for SafetyBUS p: false
• With pluggable modules, analogue I/O: true
• Supporting protocol for Data-Highway: false
• With pluggable modules, central modules: true
• Number of HW-interfaces industrial Ethernet: 1
• Performance level acc. EN ISO 13849-1: Level e
• Supporting protocol for INTERBUS-Safety: false
• Supporting protocol for DeviceNet Safety: false
• Supporting protocol for other bus systems: true
• Supporting protocol for Foundation Fieldbus: false
• With pluggable modules, communication modules: true
• With bus coupler for modular station connection: true
• Supporting protocol for AS-Interface Safety at Work: false
• Type of electric connection: Screw-/spring clamp connection
• Fieldbus connection over separate bus coupler possible: true
• With pluggable modules, function and technology modules: true
• Explosion safety category for gas: ATEX gas-ex-protection, Cat. 3G
