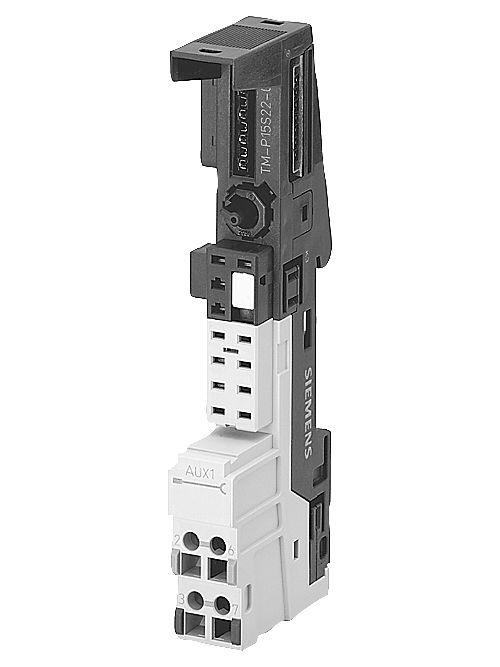

S-A 6ES71934CE100AA0 MODULE TERM TM
Product image thumbnail 0
Product image thumbnail 1
$20.16/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 6ES71934CE100AA0
North Coast Part # 1550457

Specifications

  • Brand: SIMATIC
  • Number of slots: 2
  • Depth: 43.0 millimetre
  • Width: 15.0 millimetre
  • Height: 120.0 millimetre
  • Input voltage, type: AC/DC
  • Manufacturer name: Siemens
  • Output voltage type: AC/DC
  • Rack-assembly possible: false
  • System components present: true
  • Front installation possible: true
  • max. input voltage with DC: 48 volt
  • max. output voltage with DC: 48 volt
  • min. output voltage with DC: 24 volt
  • Manufacturer product family: ET 200S
  • min. input voltage with DC: 24.0 volt
  • plug-in modules, other present: true
  • suitable for safety functions: false
  • Bearing track assembly possible: true
  • max. input current with DC: 10.0 ampere
  • max. output current with DC: 10.0 ampere
  • Integrated current supply present: false
  • description of product type: TM-P15C22-01
  • max. input voltage with AC 50 Hz: 230 volt
  • max. input voltage with AC 60 Hz: 230 volt
  • min. input voltage with AC 50 Hz: 120 volt
  • min. input voltage with AC 60 Hz: 120 volt
  • Manufacturer product root: Terminal module
  • max. output voltage with AC 50 Hz: 230 volt
  • max. output voltage with AC 60 Hz: 230 volt
  • min. output voltage with AC 50 Hz: 120 volt
  • min. output voltage with AC 60 Hz: 120 volt
  • plug-in modules, analog E/A present: false
  • plug-in modules, digital E/A present: false
  • max. input current with AC 50 Hz: 10.0 ampere
  • max. input current with AC 60 Hz: 10.0 ampere
  • wall mounting/direct mounting possible: true
  • Corresponding operating medium (Ex ia): false
  • Corresponding operating medium (Ex ib): false
  • max. output current with AC 50 Hz: 10.0 ampere
  • max. output current with AC 60 Hz: 10.0 ampere
  • plug-in modules, central modules present: false
  • pluggable module (communication module) present: false
  • plug-in modules, function and technology modules present: false

Overview

UPC 66264322680
GTiN 00662643226805
Length 5.520 in
Width 15.0 mm
Depth 43.0 mm
Height 119.5 mm
Country of Origin Poland
Family Brand Name Siemens
