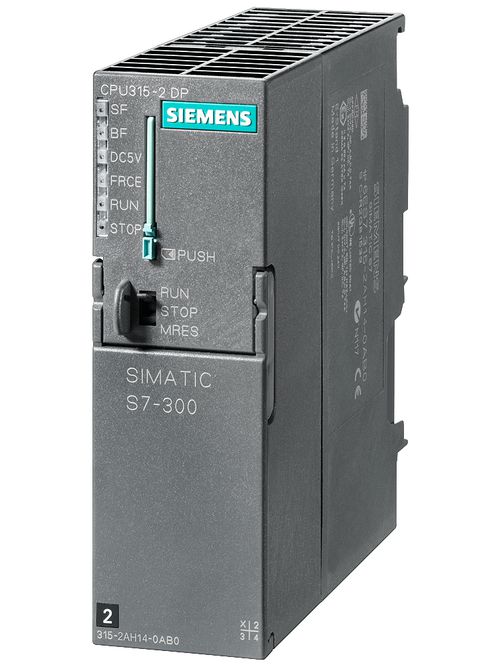

Siemens Industry 6ES73152AH140AB0 24 VDC 850 mA Automation CPU

Specifications

• Ambient temperature during operation maximum [°C]: 60
• Ambient temperature during operation minimum [°C]: 0
• Amount of data at the 2nd interface as DP master as reference data for outputs per distributed I/O slave maximum [byte]: 244
• Amount of data at the 2nd interface as DP master as user data for inputs per distributed I/O slave maximum [byte]: 244
• Amount of data at the 2nd interface as DP slave as user data per address range maximum [byte]: 32
• Amount of data of data modules maximum [kbyte]: 64
• Amount of data of function blocks maximum [kbyte]: 64
• Amount of data of organization blocks maximum [kbyte]: 64
• Amount of data of the address area of the inputs at the 2nd interface as DP master maximum [byte]: 2048
• Amount of data of the address area of the inputs total [byte]: 2048
• Amount of data of the address area of the outputs at the 2nd interface as DP master maximum [byte]: 2048
• Amount of data of the address area of the outputs total [byte]: 2048
• Amount of data of the FC subprograms maximum [kbyte]: 64
• Buffer time of the hardware real-time clock typical [h]: 1008
• Buffer time of the hardware real-time clock typical Note: At 40 °C ambient temperature
• Buffering time in the event of power failure [ms]: 5
• communication function Dataset gateway: yes
• communication function S7 client communication: yes
• communication function S7 client communication Note: Via CP and loadable FB
• communication function S7 communication: yes
• communication function S7 server communication: yes
• Consumed current during no-load operation typical [A]: 0.15
• Consumed current rated value [mA]: 850
• Depth [mm]: 130
• Design of the external protection for mains supply line recommended: 2 A min.
• Design of the interface at the 1st interface: Integrated RS 485 interface
• Design of the interface at the 2nd interface: Integrated RS 485 interface
• Design of the PLC basic equipment: Modular
• Equipment marking acc. to DIN EN 81346-2: K
• Firmware version: V3.3
• Height [mm]: 125
• I2t value [A2.s]: 1
• Inrush current typical [A]: 3.5
• Mounting type front mounting: no
• Mounting type rack mounting: no
• Mounting type rail mounting: yes
• Mounting type wall mounting: no
• Number of address ranges at the 2nd interface as DP slave maximum: 32
• Number of analog inputs: 0
• Number of analog inputs addressable: 1024
• Number of analog inputs centrally addressable: 256
• Number of analog inputs/outputs addressable maximum: 1024
• Number of analog inputs/outputs addressable maximum Note: Inputs and outputs in each case
• Number of analog outputs: 0
• Number of analog outputs addressable: 1024
• Number of analog outputs centrally addressable: 256
• Number of asynchronous error OBs: 5
• Number of asynchronous error OBs Note: OB 80, 82, 85, 86, 87
• Number of breakpoints of the test/commissioning function: 4
• Number of CP LAN units recommended: 10
• Number of cyclic interrupt OBs: 4
• Number of cyclic interrupt OBs Note: OB 32, 33, 34, 35
• Number of data blocks maximum: 1024
• Number of data blocks maximum Note: Number range: 1 to 16000
• Number of digital inputs: 0
• Number of digital inputs addressable: 16384
• Number of digital inputs centrally addressable: 1024
• Number of digital inputs/outputs addressable maximum: 16384
• Number of digital inputs/outputs addressable maximum Note: Inputs and outputs in each case
• Number of digital outputs: 0
• Number of digital outputs addressable: 16384
• Number of digital outputs centrally addressable: 1024
• Number of DP masters Integrated: 1
• Number of DP slaves at the 2nd interface as DP master can be activated/deactivated simultaneously maximum: 8
• Number of DP slaves at the 2nd interface as DP master maximum: 124
• Number of DP slaves at the 2nd interface as DP master maximum Note: Per station
• Number of DPV1 interrupt OBs: 3
• Number of DPV1 interrupt OBs Note: OB 55, 56, 57
• Number of entries in the diagnostic buffer maximum: 500
• Number of expansion devices maximum: 3
• Number of FC subprograms maximum: 1024
• Number of FC subprograms maximum Note: Number range: 0 to 7999
• Number of free cycle OBs: 1
• Number of free cycle OBs Note: OB 1
• Number of function blocks maximum: 1024
• Number of function blocks maximum Note: Number range: 0 to 7999
• Number of function modules recommended: 8
• Number of hardware interrupt OBs: 1
• Number of hardware interrupt OBs Note: OB 40
• Number of IEC counters Note: Unlimited (limited only by RAM capacity)
• Number of IEC timers Note: Unlimited (limited only by RAM capacity)
• Number of interfaces acc. to Industrial Ethernet: 0
• Number of interfaces acc. to PROFINET: 0
• Number of interfaces acc. to RS 422: 0
• Number of interfaces acc. to RS 485: 2
• Number of interfaces acc. to RS 485 Note: MPI and PROFIBUS DP
• Number of interfaces other: 0
• Number of isochronous mode OBs: 1
• Number of isochronous mode OBs Note: OB 61
• Number of operating hours counters: 1
• Number of point-to-point components recommended: 8
• Number of possible connections for S7 basic communication usable: 12
• Number of racks maximum: 4
• Number of relay outputs Integrated maximum: 0
• Number of S7 counters: 256
• Number of S7 timers: 256
• Number of startup OBs: 1
• Number of startup OBs Note: OB 100
• Number of synchronous error OBs: 2
• Number of synchronous error OBs Note: OB 121, 122
• Number of time-delay interrupt OBs: 2
• Number of time-delay interrupt OBs Note: OB 20, 21
• Number of time-of-day interrupt OBs: 1
• Number of time-of-day interrupt OBs Note: OB 10
• Number of units per rack maximum: 8
• Number of variables of the test/commissioning function: Control maximum: 14
• Number of variables of the test/commissioning function: Force maximum: 10
• Number of variables of the test/commissioning function: Status maximum: 30
• Number of variables of the test/commissioning function: Status/Control maximum: 30
• Power loss [W] typical [mW]: 4500
• Processing time for 1000 bit operations [ms]: 0.05
• Processing time for bit operation typical [ns]: 50
• Processing time for fixed-point arithmetic typical [µs]: 0.12
• Processing time for floating-point arithmetic typical [µs]: 0.45
• Processing time for word operations typical [ns]: 90
• product brand name: SIMATIC
• Product category: CPU
• Product component display: no
• Product component Hardware real-time clock: yes
• Product extension Main memory expansion: no
• Product family: S7-300
• Product feature of the hardware real-time clock buffered and synchronizable: yes
• Product feature of the memory buffered: yes
• Product feature of the memory buffered Note: Guaranteed by MMC (maintenance-free)
• Product feature redundancy capability: yes
• Product feature retentive operating hours counter: yes
• Product feature retentive operating hours counter Note: Must be restarted at each restart
• Product function at the 1st interface DP master: no
• Product function at the 1st interface DP slave: no
• Product function at the 1st interface Galvanic isolation: no
• Product function at the 1st interface MPI: yes
• Product function at the 1st interface PROFIBUS DP master: no
• Product function at the 1st interface PROFIBUS DP slave: no
• Product function at the 1st interface PtP: no
• Product function at the 2nd interface DP master: yes
• Product function at the 2nd interface DP slave: yes
• Product function at the 2nd interface Galvanic isolation: yes
• Product function at the 2nd interface MPI: no
• Product function at the 2nd interface PROFIBUS DP master: yes
• Product function at the 2nd interface PROFIBUS DP slave: yes
• Product function at the 2nd interface PtP: no
• Product function of S7 counters adjustable retentive memory requirement: yes
• Product function of the S7 timers adjustable retentive memory requirement: yes
• Product function of the test/commissioning function Single step: yes
• Product function time synchronization: yes
• Produkteigenschaft des Puffers ohne Batterie: yes
• Produkteigenschaft des Puffers ohne Batterie Anmerkung: Program and data
• programming language CFC: yes
• programming language GRAPH: yes
• programming language HiGraph: yes
• programming language SCL: yes
• programming language STEP 7: yes
• programming language STEP 7 Note: V5.2 SP1 or higher with HW update
• programming language usable FUP: yes
• programming language usable KOP: yes
• programming language usable STL: yes
• Protocol is supported AS-interface protocol: no
• Protocol is supported MODBUS protocol: no
• Protocol is supported other protocols: yes
• Protocol is supported other protocols Note: MPI
• Protocol is supported PROFIBUS protocol: yes
• Protocol is supported PROFINET CBA protocol: no
• Protocol is supported PROFINET IO protocol: no
• Protocol is supported PROFIsafe protocol: no
• Protocol is supported TCP/IP: no
• Safety Integrity Level (SIL) acc. to IEC 61508: No
• Service at the 1st interface as MPI Global data communication: yes
• Service at the 1st interface as MPI PG/OP communication: yes
• Service at the 1st interface as MPI Routing: yes
• Service at the 1st interface as MPI S7 basic communication: yes
• Service at the 1st interface as MPI S7 client communication: no
• Service at the 1st interface as MPI S7 communication: yes
• Service at the 1st interface as MPI S7 communication Note: Only server, configured on one side
• Service at the 1st interface as MPI S7 server communication: yes
• Service at the 2nd interface as DP master Activate/Deactivate DP-slaves: yes
• Service at the 2nd interface as DP master DPV1: yes
• Service at the 2nd interface as DP master Equidistance support: yes
• Service at the 2nd interface as DP master Global data communication: no
• Service at the 2nd interface as DP master isochronous mode: yes
• Service at the 2nd interface as DP master isochronous mode Note: OB 61
• Service at the 2nd interface as DP master PG/OP communication: yes
• Service at the 2nd interface as DP master Routing: yes
• Service at the 2nd interface as DP master S7 basic communication: yes
• Service at the 2nd interface as DP master S7 basic communication Note: I blocks only
• Service at the 2nd interface as DP master S7 client communication: no
• Service at the 2nd interface as DP master S7 communication: yes
• Service at the 2nd interface as DP master S7 communication Note: Only server, configured on one side
• Service at the 2nd interface as DP master S7 server communication: yes
• Service at the 2nd interface as DP master SYNC/FREEZE: yes
• Service at the 2nd interface as DP slave direct data exchange (DxB): yes
• Service at the 2nd interface as DP slave DPV1: no
• Service at the 2nd interface as DP slave Global data communication: no
• Service at the 2nd interface as DP slave PG/OP communication: yes
• Service at the 2nd interface as DP slave Routing: yes
• Service at the 2nd interface as DP slave Routing Note: Only with active interface
• Service at the 2nd interface as DP slave S7 basic communication: no
• Service at the 2nd interface as DP slave S7 client communication: no
• Service at the 2nd interface as DP slave S7 communication: yes
• Service at the 2nd interface as DP slave S7 communication Note: Only server, configured on one side
• Service at the 2nd interface as DP slave S7 server communication: yes
• Service at the 2nd interface as PROFIBUS DP master isochronous bus cycle: yes
• Storage capacity of the input transfer memory at the 2nd interface as DP slave [byte]: 244
• Storage capacity of the output transfer memory at the 2nd interface as DP slave [byte]: 244
• Storage capacity of the RAM Integrated [Kibyte]: 250
• Suitability for use safety-related function: no
• Supply voltage at AC at 50 Hz rated value maximum Note: Not applicable
• Supply voltage at AC at 50 Hz rated value minimum Note: Not applicable
• Supply voltage at AC at 60 Hz rated value maximum Note: Not applicable
• Supply voltage at AC at 60 Hz rated value minimum Note: Not applicable
• Supply voltage at DC Rated value 24 V: yes
• Supply voltage at DC rated value maximum [V]: 28.8
• Supply voltage at DC rated value minimum [V]: 19.2
• Test-/initiation function adjustable Diagnostics buffer: no
• Test-/initiation function Component status: yes
• Test-/initiation function Component status Note: Up to 2 simultaneously
• Test-/initiation function Force: yes
• Test-/initiation function Integrated Diagnostics buffer: yes
• Test-/initiation function Status/Control variable: yes
• Transfer rate at the 1st interface as MPI maximum [kbit/s]: 187.5
• Transfer rate at the 2nd interface as DP master maximum [Mbit/s]: 12
• Transfer rate at the 2nd interface as DP slave maximum [bit/s]: 1.20E+07
• Type of memory: other
• Type of voltage of the supply voltage: 24 V DC
• Width [mm]: 40

Product Data

Delivery Information

• Export Control Regulations: AL : N / ECCN : N
• Delivery Time: 1 Day/Days
• Net Weight (lb): 0,732 lb
• Product Dimensions (W x L x H): Not available
• Packaging Dimension: 5,157 x 5,748 x 2,008
• Package size unit of measure: in
• Quantity Unit: 1 Piece
• Packaging Quantity: 1

Additional Product Information

• EAN: 4025515077763
• UPC: 40892550306
• Commodity Code: 85371091
• LKZ_FDB/ CatalogID: ST73
• Product Group: 4030
• Country of origin: Germany
• RoHS Compliance: Since: 11/25/2009
• Returnable: Yes
• Obligation Category for taking back electrical and electronic equipment after use: No obligation to take back electrical and electronic equipment after use
