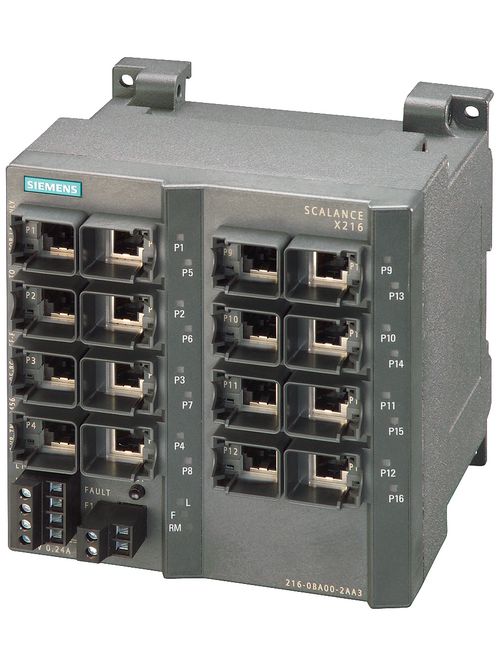

S-A 6GK52160BA002AA3 SIMATIC NET, S
Product image thumbnail 0
Product image thumbnail 1
$2,983.68/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 6GK52160BA002AA3
North Coast Part # 669371

Specifications

  • Service: true
  • Mass: 1200.0 gram
  • With guarantee: true
  • layer 2 present: true
  • Depth: 124.0 millimetre
  • Product name: SCALANCE
  • Width: 120.0 millimetre
  • layer 3 present: false
  • layer 4 present: false
  • layer 7 present: false
  • Height: 125.0 millimetre
  • ethernet possible: true
  • Protection type IP: IP30
  • number of other ports: 0
  • manageable possible: true
  • mean downtime: 1642079520
  • number of module slots: 0
  • Manufacturer name: Siemens
  • fast ethernet present: true
  • Type: 16x 10/100 Mbit/s RJ45
  • gigabit ethernet present: false
  • number of ports 10 Mbps RJ45: 0
  • Switching protocol present: true
  • number of ports 10 Mbps of SC: 0
  • number of ports 10 Mbps of ST: 0
  • description of product type: X216
  • number of ports 100 Mbps MT RJ: 0
  • number of ports 100 Mbps VF-45: 0
  • number of ports 1000 Mbps GBIC: 0
  • number of ports 1000 Mbps RJ45: 0
  • 10 gigabit ethernet present: false
  • number of ports 10 Gbps LC (LX): 0
  • number of ports 10 Gbps LC (SX): 0
  • number of ports 10 Gbps SC (LR): 0
  • number of ports 10 Gbps SC (SR): 0
  • number of ports 10/100 Mbps M12: 0
  • number of ports 1000 Mbps VF-45: 0
  • power over ethernet present: false
  • number of max. stackable switches: 0
  • number of ports 10/100 Mbps RJ45: 16
  • number of ports 1000 Mbps SC (LX): 0
  • number of ports 1000 Mbps SC (SX): 0
  • number of ports 100/1000 Mbps RJ45: 0
  • number of ports 1000 Mbps of MT RJ: 0
  • number of ports 1000 Mbps mini GBIC: 0
  • number of ports 10/100/1000 Mbps RJ45: 0
  • number of combination-ports RJ45/mini GBIC: 0
  • type of fixing (rail mounting) available: true
  • type of fixing (wall fastening) available: true
  • type of fixing (35 mm DIN rail mounting) available: true
  • additional link address: https://support.industry.siemens.com
  • max. ambient temperature during operating phase: 60 degree_Celsius
  • min. ambient temperature during operating phase: -40 degree_Celsius
  • design of the electrical connection for power supply: 4-pole terminal block
  • cascading in the case of redundant ring at reconfiguration time less than0,3s: 100
  • cascading in cases of star structuring: any (depending only on signal propagation time)

Overview

UPC 66264342507
GTiN 00662643425079
Length 120 mm
Width 4.8819 in
Operating Temperature -40 To 60 DEG C
Type SCALANCE X216
Mounting Type Wall,S7-300 Rail,35 MM DIN Rail
Height 4.921 in
Standard KC Approval,EN 61000-6-4:2001,CSA C22.2 No. 60950-1 Certified,UL 60950-1 Listed,C-Tick,CE Mark,EN 61000-6-2:2001
Family Brand Name Siemens
IP Rating IP30
Environmental Conditions -40 to 70 C
Enclosure IP30
Protocol Telnet, HTTP, HTTPS, TFTP, FTP, SNMP v1, SNMP v2, SNMP v3, DCP, LLDP, SNTP, HSR/MRP Redundancy, PRP
Number of Ports 0
