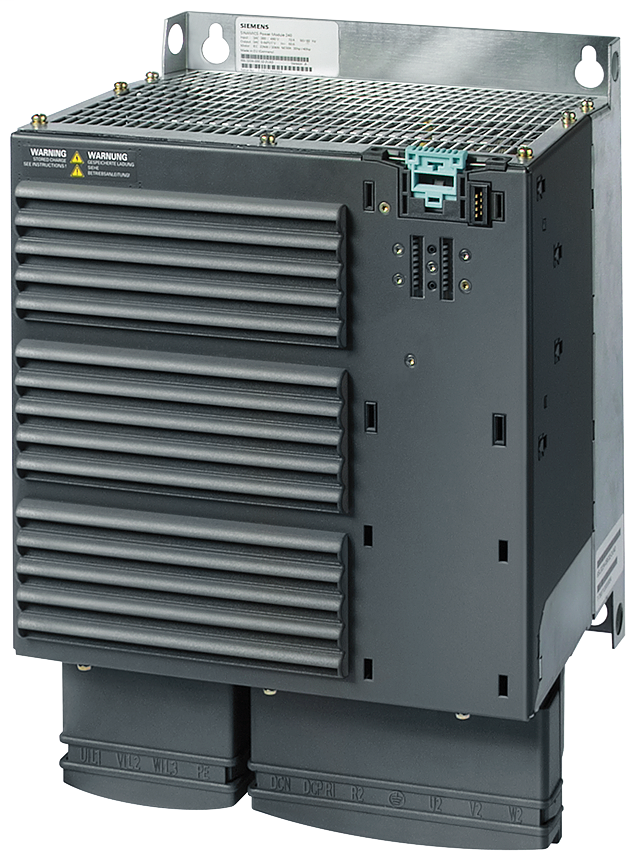

S-A 6SL32250BE318AA0 SINAMICS G120,
$6,490.22/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 6SL32250BE318AA0
North Coast Part # 1340227

Specifications

  • Number of phases output: 3
  • Number of phases input: 3
  • Relative symmetric net frequency tolerance: 5 %
  • Nominal output current I2N: 45 A
  • Mains voltage: 380 V
  • Mains voltage: 480 V
  • Max. output frequency: 550 Hz
  • Relative symmetric net voltage tolerance: -10 %
  • 4-quadrant operation possible: true
  • Application in industrial area permitted: true
  • Max. output at linear load at rated output voltage: 18.5 kW
  • Max. output at quadratic load at rated output voltage: 22.0 kW
  • Width: 275.0 mm
  • Height: 512.0 mm
  • Depth: 204.0 mm
  • Integrated breaking resistance: false
  • Application in domestic- and commercial area permitted: false
  • Degree of protection (IP): IP20
  • Mains frequency: 50/60 Hz
  • Type of converter: U converter

Overview

UPC 66264343466
GTiN 00662643434668
Length 23.630 in
Width 275.0 mm
Height 512.0 mm
Country of Origin Germany
Family Brand Name Siemens
Depth 204.0 mm
Number of Phases 3 Phase
