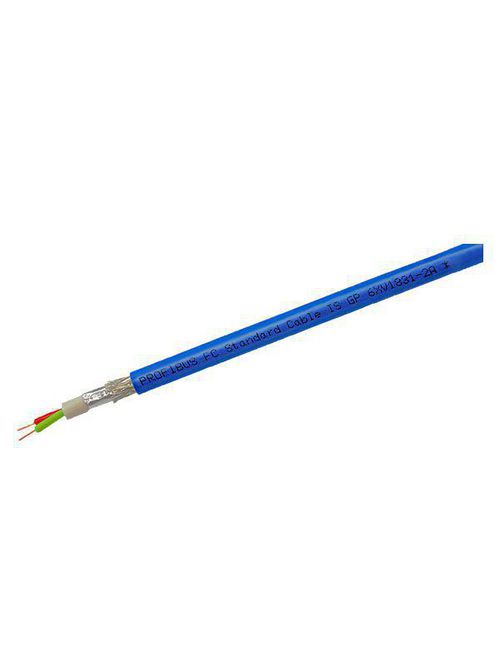

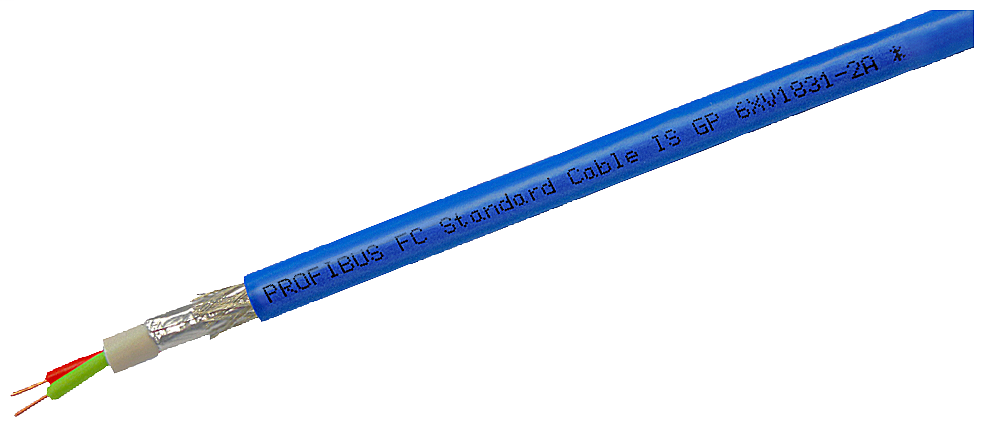

S-A 6XV18312A PB FC STANDARD CABLE,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4.45/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 6XV18312A
North Coast Part # 1435288

Specifications

  • AWG-Number: -99999
  • Number of wires: 2
  • Color of coat: Blue
  • Side wire present: false
  • Marking of conductors: Color
  • max. traction stress: 100 newton
  • REACH registration present: false
  • RoHS attention of conformity: true
  • Material of the wire insulation: PE
  • Low-fuming acc. to EN 61034-2: false
  • Diameter of conductor: 0.64 millimetre
  • Class of conductor: Kl.1 = single-wire
  • Design of shield over cabled element: None
  • Material of the mantle: Polyvinyl chloride
  • Outer diameter of the cable: 8.0 millimetre
  • Construction of the cabled element: Two wire
  • Design of shield over cabling: Film + fabric
  • halogen free (according to EN 50267-2-2): false
  • description of product type: PROFIBUS FC Standard Cable IS GP
  • max. ambient temperature during operating phase: 75 degree_Celsius
  • Flame resistant according to standard: According to IEC 60332-3-24
  • min. ambient temperature during operating phase: -40 degree_Celsius
  • Max. perm. surface temperature with stationary lines: 75 degree_Celsius
  • Min. perm. surface temperature with stationary lines: -40 degree_Celsius
  • USP information: SIMATIC NET,PROFIBUS,bus cables,bus cable,electrical network
  • design of shield: Overlapped aluminum-clad foil, sheathed in a braided screen
  • Min. perm. surface temperature with open (not stationary) lines: 75 degree_Celsius
  • Max. perm. surface temperature with open (not stationary) lines: -40 degree_Celsius

Overview

GTiN 00662643439847
Type Standard,Profibus Fast Connector
Standard CE Marked,RoHS Compliant
Family Brand Name Siemens
Outside Diameter 2.55 MM Wire Insulation X 8 MM Cable Sheath X 0.64 MM Inner Conductor X 5.4 MM Inner Sheath Of The Cable
Product UPC 66264343984
