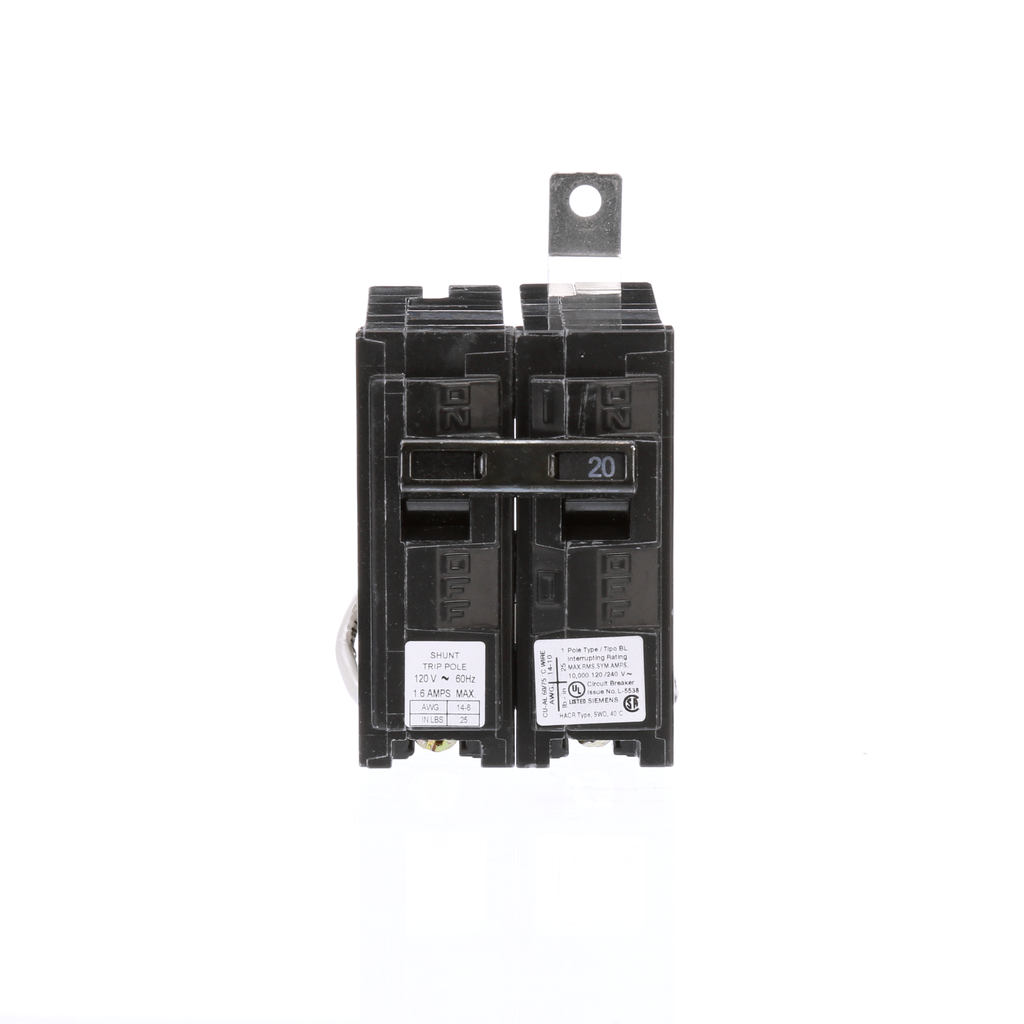

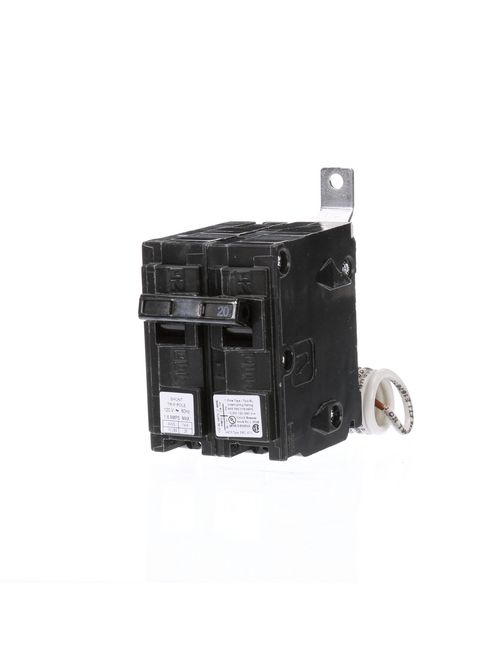

Siemens Industry B12000S01 1-Pole 20 Amp 120 Volt Circuit Breaker with 120 Volt Shunt Trip
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$234.01/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # B12000S01
North Coast Part # 486127

Specifications

  • Electrical accessories: 120V SHUNT TRIP
  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 20 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 1
  • Design of the product: BL
  • Size of the circuit-breaker: BL (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 3.5625 in
  • Width [in]: 2 in
  • Depth [in]: 3 in
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: BOLT-ON
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 14 - 12AWG (CU) / 12 - 10AWG (AL)
  • Type of mounting panel: PANELBOARD

Overview

UPC 78364326823
GTiN 00783643268234
Length 5.500
Width 2 in
Voltage 120 Volt
Type BL
Applications Electrical Distribution
Depth 3 in
Height 3.562 in
Connection Type Bolt-On
Family Brand Name Siemens
TC Connection BOLT-ON
Number of Poles 1 Pole
Interrupt Rating 10 A
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Actuator N/A
Trip Type N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
