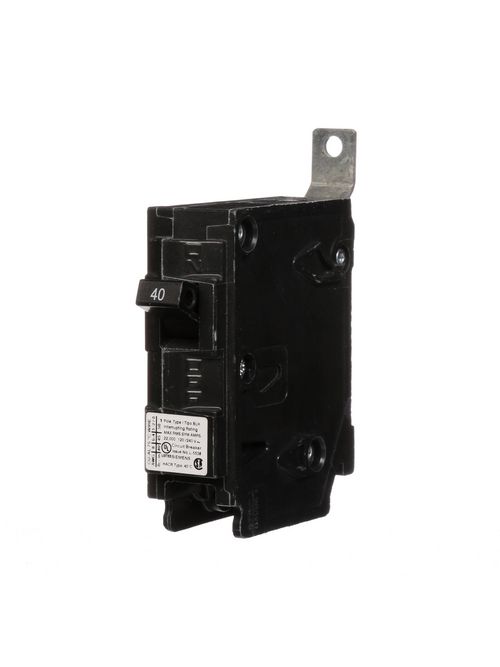

Siemens Industry B140H 1-Pole 40 Amp 120 Volt 22 kA Bolt-On Molded Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$92.01/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # B140H
North Coast Part # 605166

Features

  • 22K AIC series rating
  • Panel board mounting
  • Time saving insta-wire feature
  • HACR rated
  • 40?C calibration
  • UL listed

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 40 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 1
  • Design of the product: BLH
  • Size of the circuit-breaker: BL (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 3.5625 in
  • Width [in]: 1 in
  • Depth [in]: 3 in
  • Product feature: 22kA INTERRUPT
  • Type of electrical connection: BOLT-ON
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 8 - 6AWG (CU) / 8 - 4AWG (AL)
  • Type of mounting panel: PANELBOARD

Overview

UPC 78364326384
GTiN 00783643263840
Length 3 in
Width 1 in
Voltage 120 Volt
Type BLH
Applications Electrical Distribution
Depth 3 in
Height 3.562 in
Connection Type Bolt-On
Family Brand Name Siemens
TC Connection BOLT-ON
Blade Dimensions 3 in L x 1 in W x 4 in H
Trip Type Thermal Magnetic
Number of Poles 1 Pole
Interrupt Rating 22 kA
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Actuator N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
