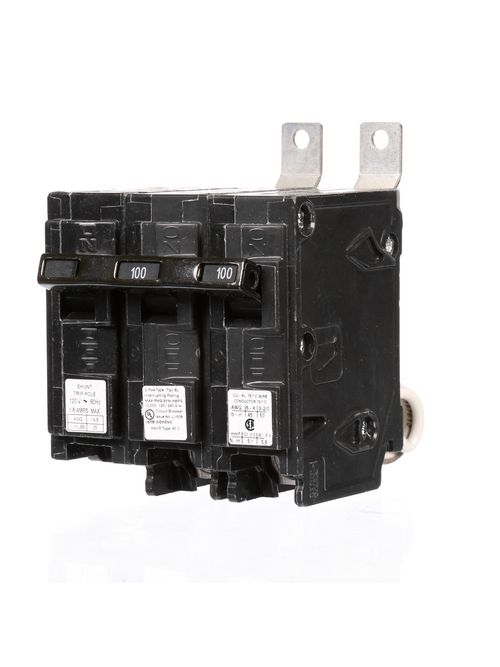

Siemens Ca B210000S01 BREAKER 100A
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$444.81/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # B210000S01
North Coast Part # 494553

Specifications

  • Electrical accessories: 120V SHUNT TRIP
  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 100 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 2
  • Design of the product: BL
  • Size of the circuit-breaker: BL (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 3.75 in
  • Width [in]: 3 in
  • Depth [in]: 3 in
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: BOLT-ON
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 4 - 1/0AWG (CU) / 2 - 1/0AWG (AL)
  • Type of mounting panel: PANELBOARD

Overview

UPC 78364326846
GTiN 00783643268463
Length 5.500
Width 3 in
Voltage 120/240 Volt
Type BL
Applications Electrical Distribution
Depth 3 in
Height 3.75 in
Connection Type Bolt-On
Family Brand Name Siemens
TC Connection BOLT-ON
Number of Poles 2 Pole
Interrupt Rating 10 A
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Actuator N/A
Trip Type N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
