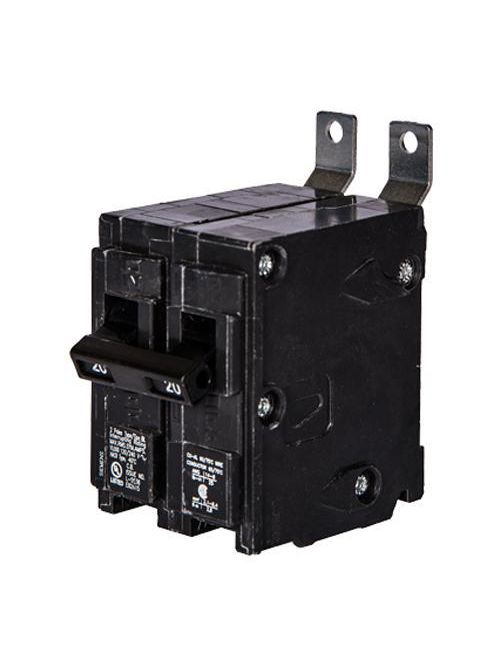

Siemens Industry B220AFCH 2-Pole 20 Amp 120/240 VAC 22 kA Arc Fault Circuit Interrupter
Product image thumbnail 0
Product image thumbnail 1
$3,077.76/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # B220AFCH
North Coast Part # 998705

Specifications

  • Standard: UL
  • Continuous current rated value: 20 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: PARALLEL AND SERIES ARCING PROTECTION
  • Number of poles: 2
  • Design of the product: BAFH
  • Design of the overload release: THERMAL-MAGNETIC
  • Product feature: 22kA INTERRUPT
  • Type of electrical connection: BOLT-ON
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 14 - 8AWG (CU) / 12 - 8AWG (AL)
  • Type of mounting panel: PANELBOARD

Overview

UPC 04089215071
Item Long Description Type BAFH Molded Case Circuit Breaker, Thermal-Magnetic, 2 Poles, 120/240V, 20A, 22kA, Combination Type Arc Fault Circuit Interrupter
GTiN 00040892150711
Length 3 in
Width 2.000
Voltage 120/240 Volt
Type BAFH
Material Composite
Applications Electrical Distribution
Height 3.5 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Blade Dimensions 3 in L x 2 in W x 3.5 in H
Trip Type Thermal Magnetic
Number of Poles 2 Pole
Interrupt Rating 22 kA
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Actuator N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
