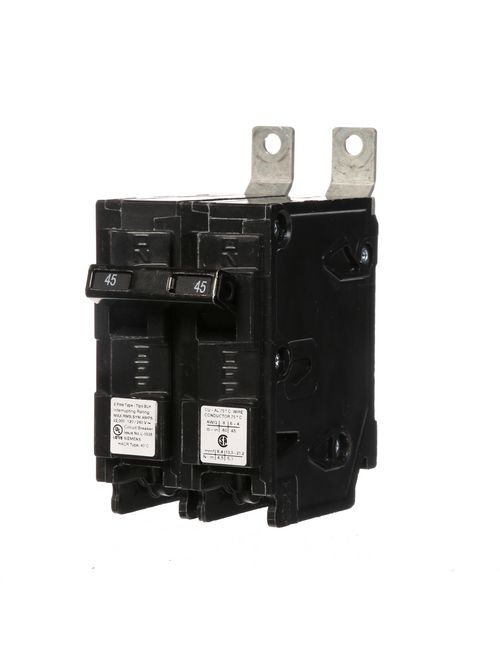

Siemens Industry B245H 120/240 Volt 45 Amp 22 kaic 2-Pole Type BLH Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$184.72/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # B245H
North Coast Part # 350500

Features

  • 22K AIC series rating
  • Panel board mounting
  • Time saving insta-wire feature
  • HACR rated
  • UL listed

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 45 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 2
  • Design of the product: BLH
  • Size of the circuit-breaker: BL (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 3.5625 in
  • Width [in]: 2 in
  • Depth [in]: 3 in
  • Product feature: 22kA INTERRUPT
  • Type of electrical connection: BOLT-ON
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 8 - 6AWG (CU) / 8 - 4AWG (AL)
  • Type of mounting panel: PANELBOARD

Overview

UPC 78364300092
GTiN 00783643000926
Length 3 in
Width 2 in
Voltage 120/240 Volt
Type BLH
Applications Electrical Distribution
Depth 3 in
Height 3.562 in
Connection Type Bolt-On
Family Brand Name Siemens
TC Connection BOLT-ON
Blade Dimensions 3 in L x 2 in W x 4 in H
Trip Type Thermal Magnetic
Number of Poles 2 Pole
Interrupt Rating 22 kA
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Actuator N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
