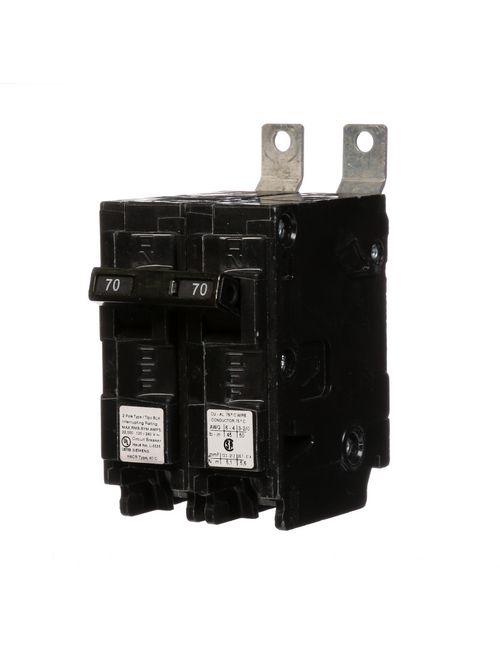

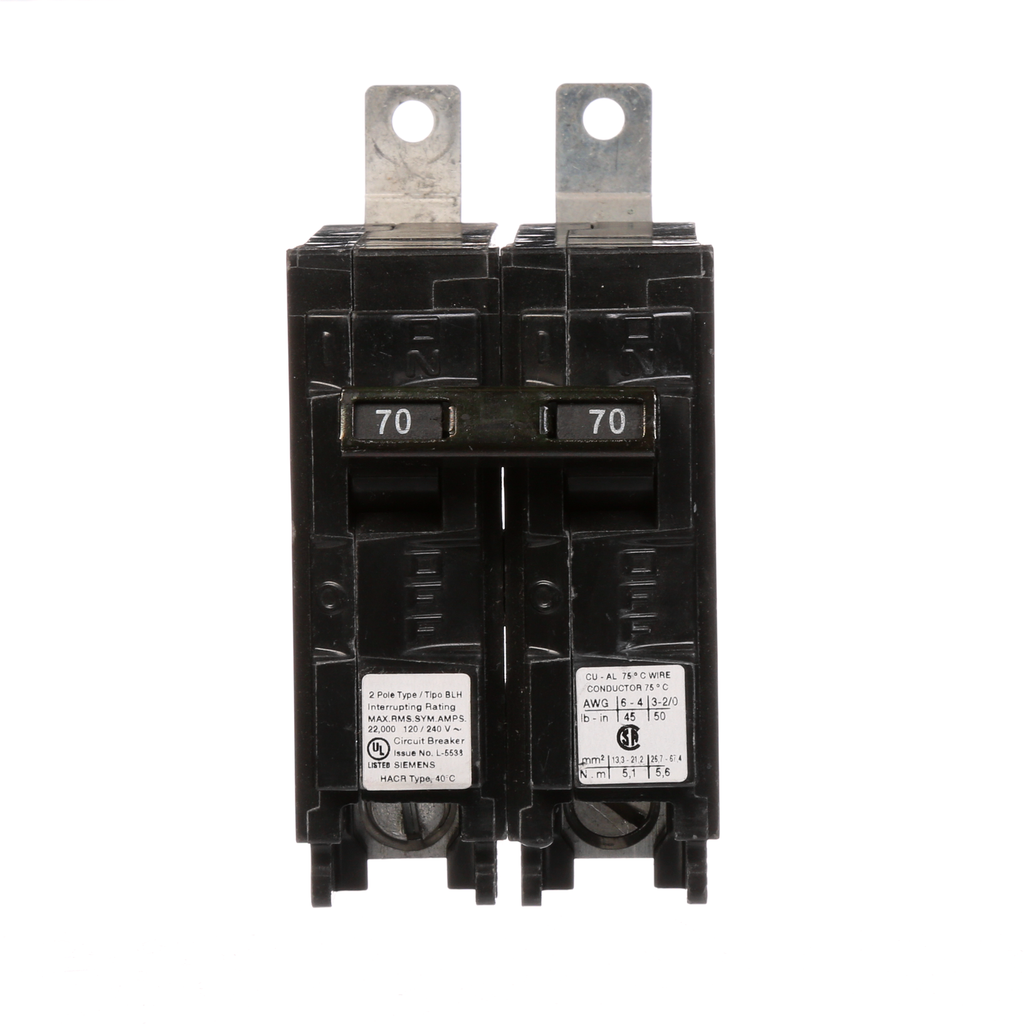

Siemens Industry B270H 2-Pole 70 Amp 120/240 VAC 22 kA Bolt-On Molded Case Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
$273.50/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # B270H
North Coast Part # 485344

Features

  • 22K AIC series rating
  • Panel board mounting
  • Time saving insta-wire feature
  • HACR rated
  • UL listed

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 70 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 2
  • Design of the product: BLH
  • Size of the circuit-breaker: BL (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 3.75 in
  • Width [in]: 2 in
  • Depth [in]: 3 in
  • Product feature: 22kA INTERRUPT
  • Type of electrical connection: BOLT-ON
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 8 - 4AWG (CU) / 8 - 2AWG (AL)
  • Type of mounting panel: PANELBOARD

Overview

UPC 78364326395
GTiN 00783643263956
Length 4.000
Width 2 in
Voltage 120/240 Volt
Type BLH
Applications Electrical Distribution
Depth 3 in
Height 3.75 in
Connection Type Bolt-On
Family Brand Name Siemens
TC Connection BOLT-ON
Number of Poles 2 Pole
Interrupt Rating 22 A
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Actuator N/A
Trip Type N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
