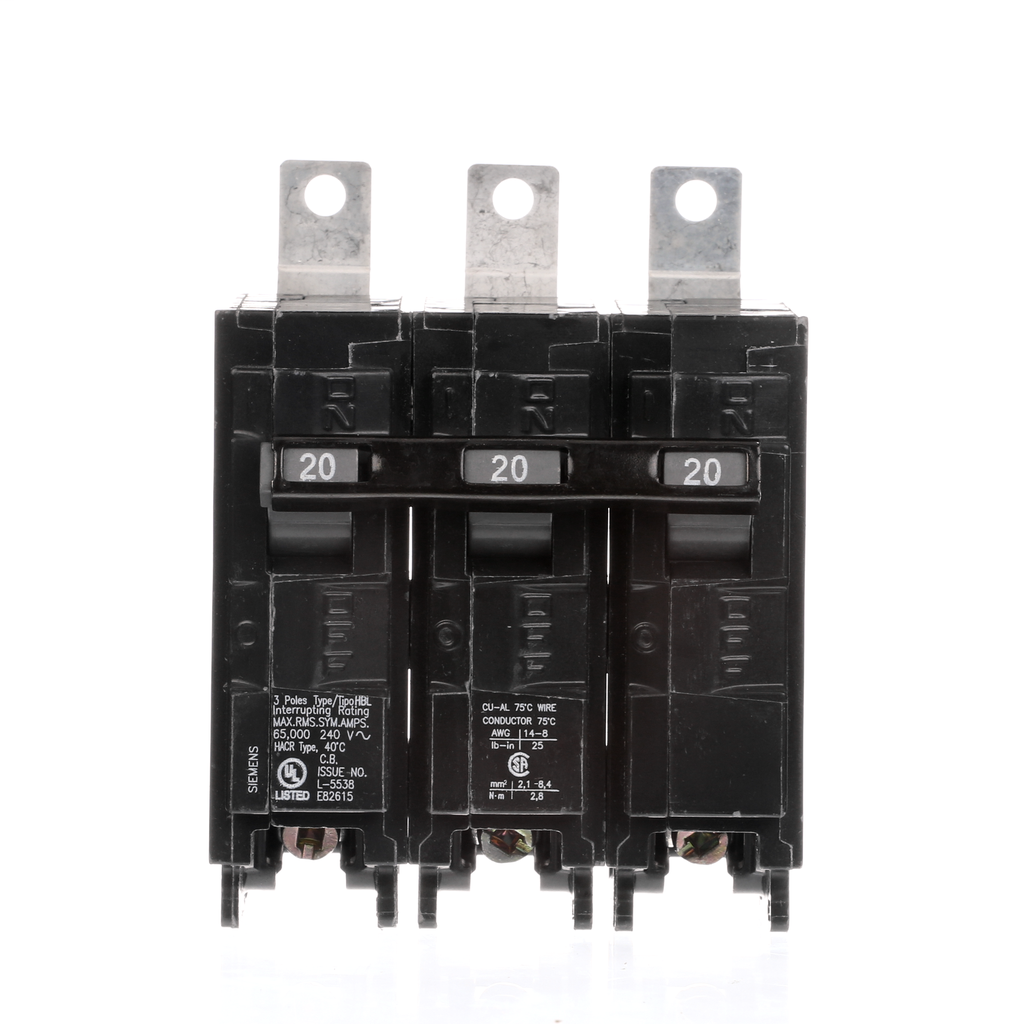

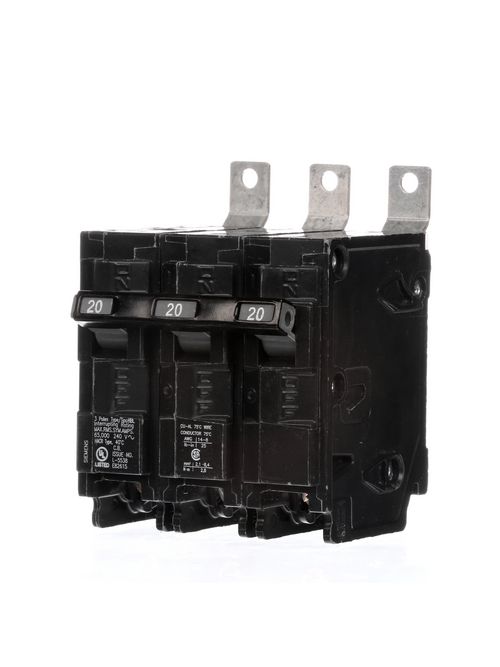

Siemens Industry B320HH 3-Pole 20 Amp 240 VAC 65 kA Bolt-On Molded Case Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$656.44/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # B320HH
North Coast Part # 551537

Features

  • 65K AIC series rating
  • Panel board mounting
  • HACR rated
  • 40?C calibration
  • UL listed

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 20 A
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 3
  • Design of the product: HBL
  • Size of the circuit-breaker: BL (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 3.75 in
  • Width [in]: 3 in
  • Depth [in]: 3 in
  • Product feature: 65kA INTERRUPT
  • Type of electrical connection: BOLT-ON
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 14 - 12AWG (CU) / 12 - 10AWG (AL)
  • Type of mounting panel: PANELBOARD

Overview

UPC 78364326421
Item Long Description Siemens HBL breakers provide easy bolt-on connections in Siemens panelboards. Siemens offers 3 AIC ratings for these breakers: BL at 10K AIC, BLH at 22K AIC, and HBL at 65 K AIC. They are available in 10-125 Amp, with 1, 2 and Triple Poles. All circuit breakers are designed to sense when an over current occurs, measure the amount of over current and lastly, act by tripping quickly enough to prevent damage to itself and associated conductors.
GTiN 00783643264212
Length 4.000
Width 3 in
Voltage 240 Volt
Type HBL
Applications Electrical Distribution
Depth 3 in
Height 3.75 in
Connection Type Bolt-On
Family Brand Name Siemens
TC Connection BOLT-ON
Number of Poles 3 Pole
Interrupt Rating 65 A
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Actuator N/A
Trip Type N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
