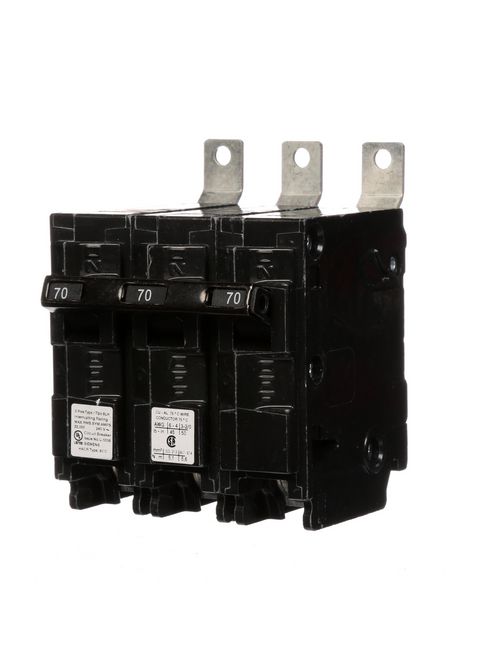

Siemens Industry B370H 3-Pole 70 Amp 240 Volt 22 K Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # B370H
North Coast Part # 486229


  • 22K AIC series rating
  • Panel board mounting
  • HACR rated
  • 40?C calibration
  • UL listed


  • Continuous current rated value: 70 A
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 3
  • Design of the product: BLH
  • Size of the circuit-breaker: BL (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 3.75 in
  • Width [in]: 3 in
  • Depth [in]: 3 in
  • Product feature: 22kA INTERRUPT
  • Type of electrical connection: BOLT-ON
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 8 - 4AWG (CU) / 8 - 2AWG (AL)
  • Type of mounting panel: PANELBOARD


UPC 78364326404
GTiN 00783643264045
Length 4.000
Width 3 in
Voltage 240 Volt
Type BLH
Applications For Electrical Distribution
Depth 3 in
Height 3.75 in
Connection Type Bolt-On
Family Brand Name Siemens
TC Connection BOLT-ON
Number of Poles 3 Pole
Interrupt Rating 22 AIC
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame BLH
Actuator N/A
Trip Type Thermal Magnetic
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Blade Dimensions 4 in L x 4 in W x 3 in H
