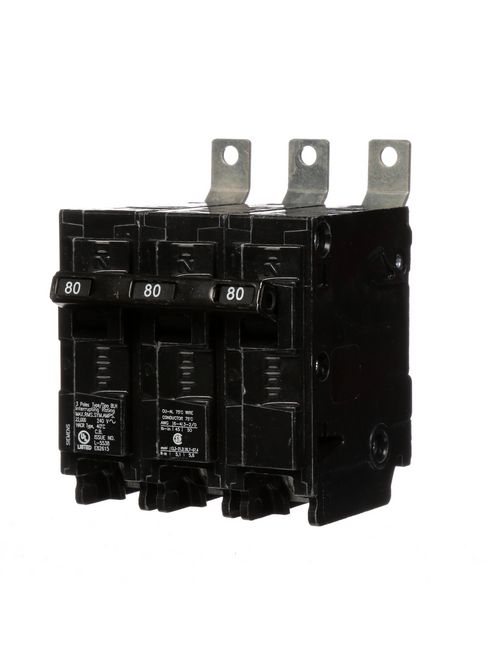

Siemens Industry B380H 3-Pole 80 Amp 240 Volt 22 kA Bolt-On Molded Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$661.23/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # B380H
North Coast Part # 484693

Features

  • 22K AIC series rating
  • Panel board mounting
  • HACR rated
  • 40?C calibration
  • UL listed

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 80 A
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 3
  • Design of the product: BLH
  • Size of the circuit-breaker: BL (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 3.75 in
  • Width [in]: 3 in
  • Depth [in]: 3 in
  • Product feature: 22kA INTERRUPT
  • Type of electrical connection: BOLT-ON
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 4 - 1/0AWG (CU) / 2 - 1/0AWG (AL)
  • Type of mounting panel: PANELBOARD

Overview

UPC 78364326405
GTiN 00783643264052
Length 4.000
Width 3 in
Voltage 240 Volt
Type BLH
Applications Electrical Distribution
Depth 3 in
Height 3.75 in
Connection Type Bolt-On
Family Brand Name Siemens
TC Connection BOLT-ON
Blade Dimensions 4 in L x 3 in W x 3 in H
Trip Type Thermal Magnetic
Number of Poles 3 Pole
Interrupt Rating 22 kA
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Actuator N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
