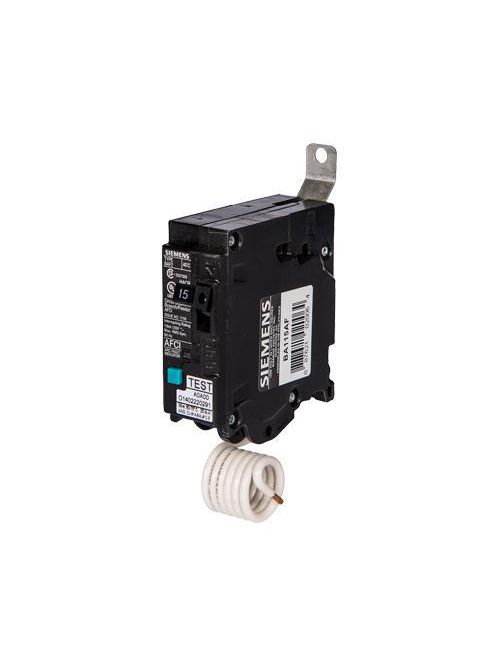

Siemens Ca BA115AFCH DISJ. BAFH2,1P
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 6 to 10 Days
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # BA115AFCH
North Coast Part # 1342328


  • Standard: UL
  • Continuous current rated value: 15 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: PARALLEL AND SERIES ARCING PROTECTION
  • Number of poles: 1
  • Design of the product: BAFH2
  • Design of the overload release: THERMAL-MAGNETIC
  • Product feature: 22kA INTERRUPT
  • Type of electrical connection: BOLT-ON
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 14 - 8AWG (CU) / 12 - 8AWG (AL)
  • Type of mounting panel: PANELBOARD


UPC 88762121468
Item Long Description BREAKER 15A 1P 120V 22K BAF2H COMB AFCI
GTiN 00887621214685
Length 1.2 in
Width 3.300
Voltage 120 Volt
Type Combination
Applications Electrical Distribution
Height 5.3 in
Connection Type Bolt-On
Family Brand Name Siemens
TC Connection BOLT-ON
Blade Dimensions 3.3 in W x 1.2 in D x 5.3 in H
Trip Type Thermal Magnetic
Number of Poles 1 Pole
Interrupt Rating 22 kA
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Actuator N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
