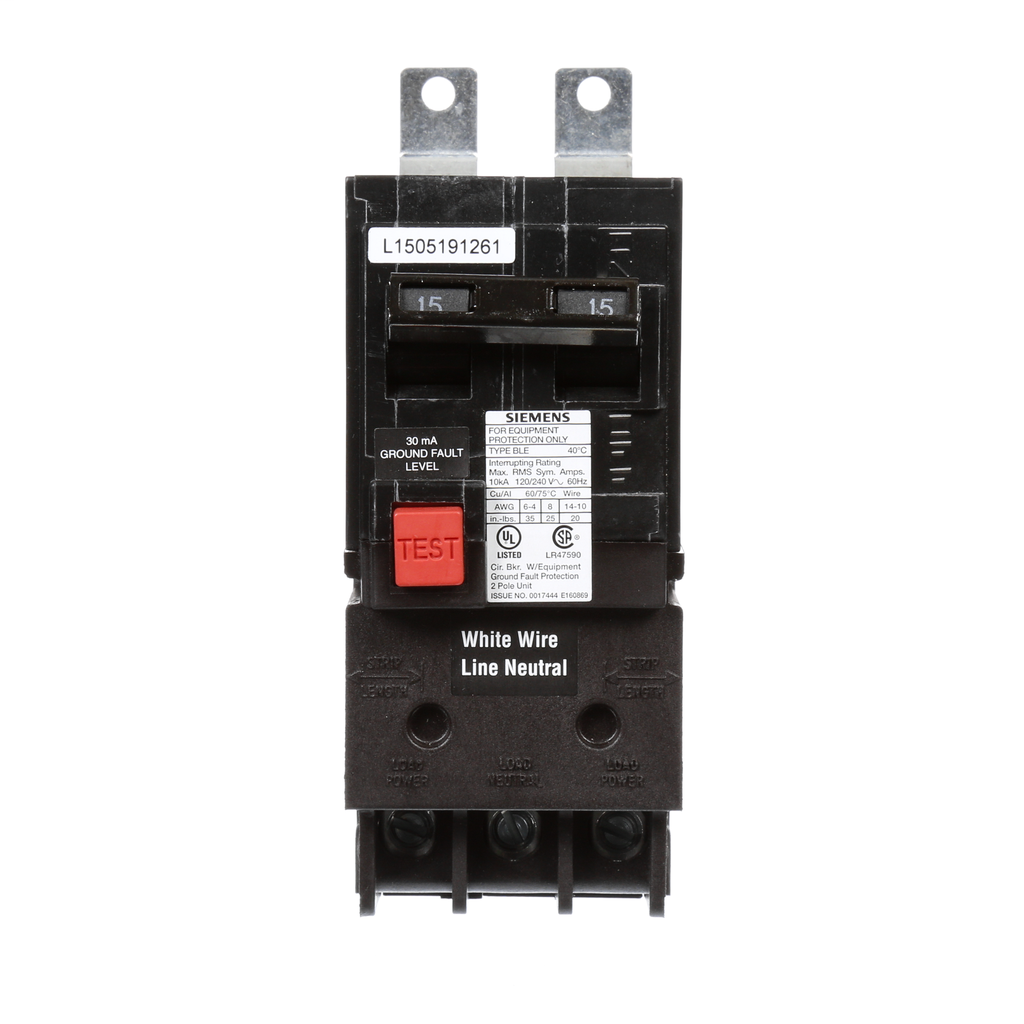

Siemens Industry BE215 2-Pole 15 Amp 120/240 VAC 10 kA Equipment Protection Bolt-On Ground Fault Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$444.59/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # BE215
North Coast Part # 675586

Features

  • Provides protection of equipment from damaging line to ground fault currents
  • Ground fault circuit interrupter
  • Panel board mounting
  • UL listed

Specifications

  • Standard: UL / CSA
  • Tripping characteristic class: 30mA
  • Continuous current rated value: 15 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: EQUIPMENT PROTECTION
  • Number of poles: 2
  • Design of the product: BLE
  • Design of the overload release: THERMAL-MAGNETIC
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: BOLT-ON
  • Product brand name: SIEMENS
  • Type of mounting panel: PANELBOARD

Categories

Overview

UPC 78364327410
GTiN 00783643274105
Length 6 in
Width 4.000
Voltage 120/240 Volt
Type BL
Applications Electrical Distribution
Height 2 in
Connection Type Bolt-On
Family Brand Name Siemens
TC Connection BOLT-ON
Actuator Switch Position Knob
Blade Dimensions 6 in L x 4 in W x 2 in H
Trip Type Thermal Magnetic
Number of Poles 2 Pole
Interrupt Rating 10 kA
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
