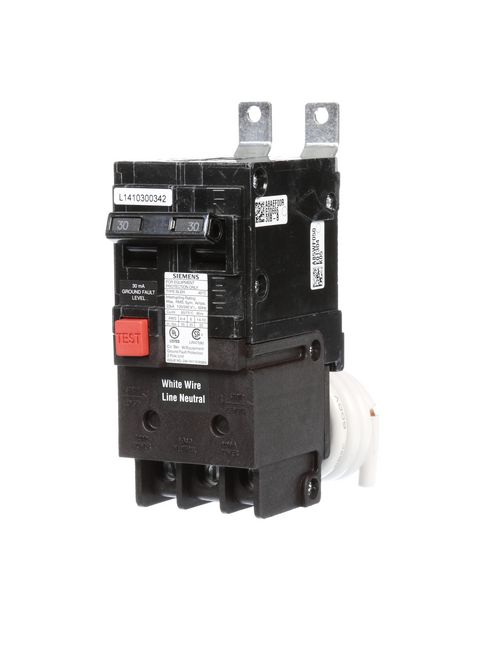

Siemens Ca BE230H DISJ BLEH,2P,120/
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$182.39/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # BE230H
North Coast Part # 934145

Features

  • Provides protection of equipment from damaging line to ground fault currents
  • Ground fault circuit interrupter
  • Panel board mounting
  • UL listed

Specifications

  • Standard: UL / CSA
  • Tripping characteristic class: 30mA
  • Continuous current rated value: 30 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: EQUIPMENT PROTECTION
  • Number of poles: 2
  • Design of the product: BLEH
  • Design of the overload release: THERMAL-MAGNETIC
  • Product feature: 22kA INTERRUPT
  • Type of electrical connection: BOLT-ON
  • Product brand name: SIEMENS
  • Type of mounting panel: PANELBOARD

Overview

UPC 78364327418
GTiN 00783643274181
Length 4.000
Width 6.000
Voltage 120/240 Volt
Type BL
Applications Electrical Distribution
Height 3 in
Connection Type Bolt-On
Family Brand Name Siemens
TC Connection BOLT-ON
Number of Poles 2 Pole
Interrupt Rating 22 A
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Actuator N/A
Trip Type N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
