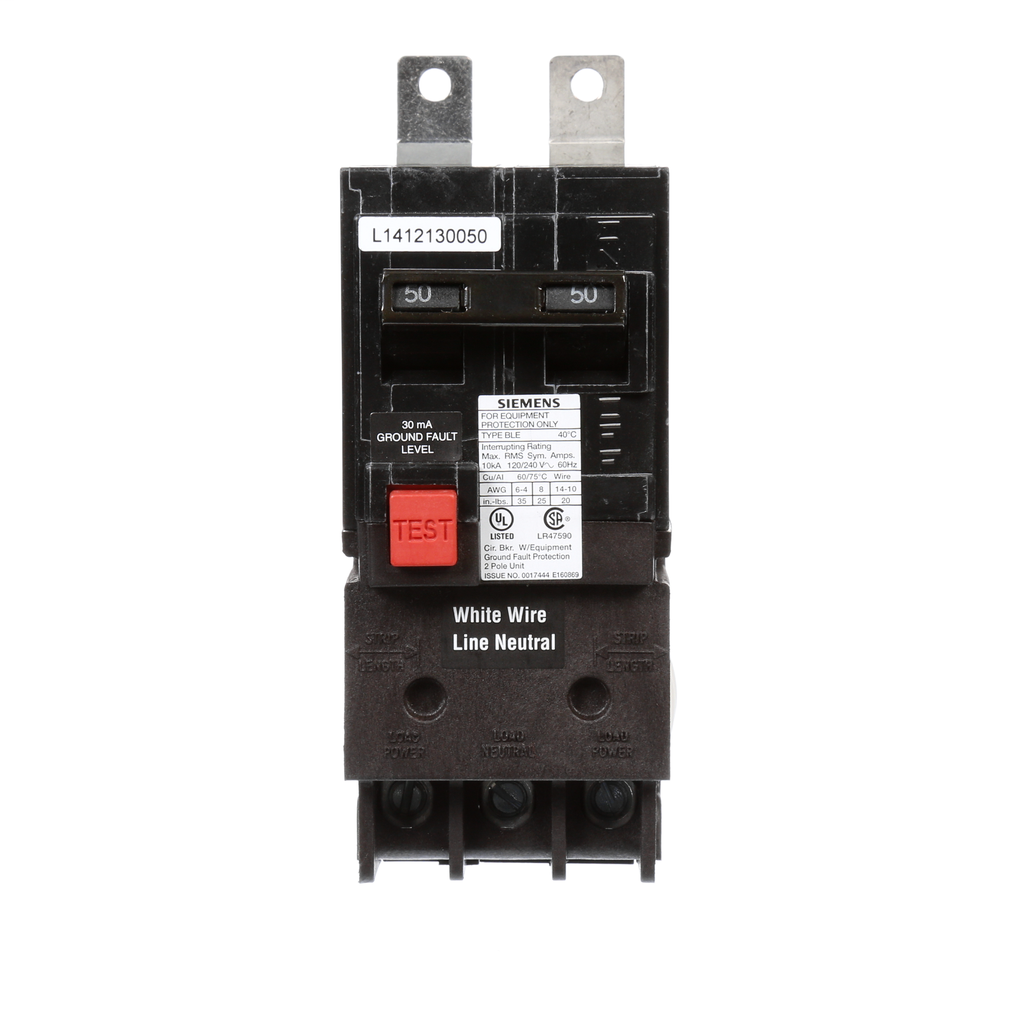

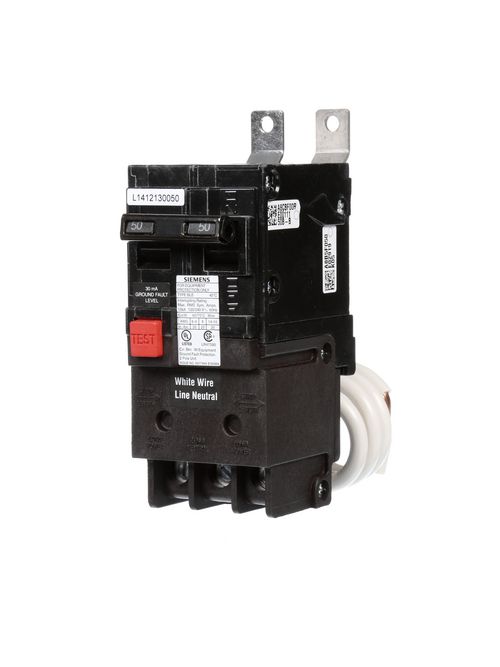

Siemens Ca BE250 BLE,TM,2P,120/240V
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 6 to 10 Days
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # BE250
North Coast Part # 487810


  • Provides protection of equipment from damaging line to ground fault currents
  • Ground fault circuit interrupter
  • Panel board mounting
  • UL listed


  • Standard: UL / CSA
  • Tripping characteristic class: 30mA
  • Continuous current rated value: 50 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: EQUIPMENT PROTECTION
  • Number of poles: 2
  • Design of the product: BLE
  • Design of the overload release: THERMAL-MAGNETIC
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: BOLT-ON
  • Product brand name: SIEMENS
  • Type of mounting panel: PANELBOARD


UPC 78364327414
Item Long Description The Siemens Type BE Circuit Breaker is apanelboard mounted non-interchangeable trip 30mA ground-fault, molded case circuit breaker available in 15-60 Amp, 1-pole and 2-pole. Available in 10KAIC and 22KAIC interrupting ratings. Siemens strongly recommends against the use of
GTiN 00783643274143
Length 2.000
Width 3.000
Voltage 120/240 Volt
Type BL
Applications For Electrical Distribution
Height 6 in
Connection Type Bolt-On
Family Brand Name Siemens
TC Connection BOLT-ON
Number of Poles 2 Pole
Interrupt Rating 10 AIC
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame BLE
Actuator N/A
Trip Type Thermal Magnetic
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Blade Dimensions 2 in L x 3 in W x 6 in H
