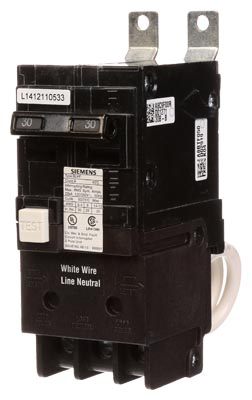

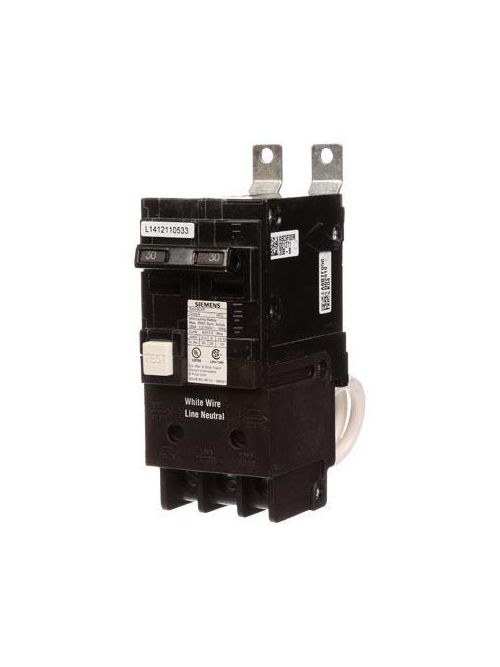

Siemens Industry BF230 2-Pole 30 Amp 120/240 Volt 10 K 5 mA Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # BF230A
North Coast Part # 1343160


  • Standard: UL / CSA
  • Tripping characteristic class: 5mA
  • Continuous current rated value: 30 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: PERSONEL PROTECTION
  • Number of poles: 2
  • Design of the product: BLF
  • Design of the overload release: THERMAL-MAGNETIC
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: BOLT-ON
  • Product brand name: SIEMENS
  • Type of mounting panel: PANELBOARD


UPC 88762121541
Item Long Description Siemens Low Voltage Molded Case Circuit Breakers Panelboard Mounting 240V GFCI Circuit Breakers - 2-Pole, GFCI - BLF, 10KAIC, 120/240VAC are Circuit ProtectionMolded Case Circuit Breakers. BRKR 30A 2P 120/240V 10K BLFB GFCI 5MA
GTiN 00887621215415
Voltage 120/240 Volt
Type Panelboard Mounting 240V GFCI Circuit Breakers
Conductor Size 14-10 AWG Copper, 12-8 AWG Aluminum
Applications Circuit Protection
Temperature Rating 40 C
Family Brand Name Siemens
Blade Dimensions 2 in W x 3 in D x 3.56 in H
Trip Type Thermal Magnetic
Number of Poles 2 Pole
Interrupt Rating 10 kA
Used With Panelboards
Sub Brand Siemens
