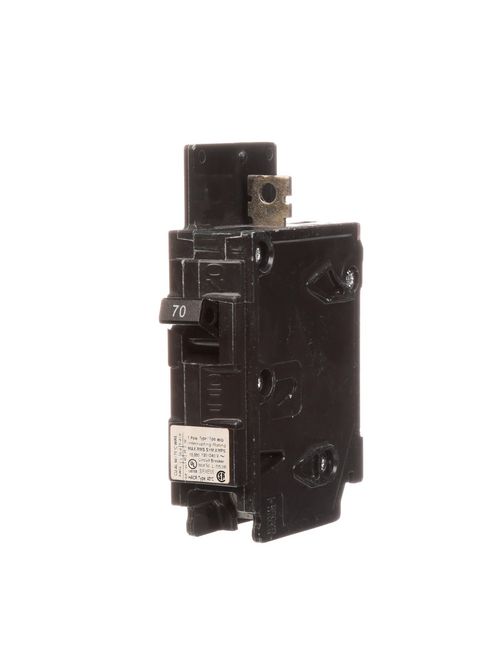

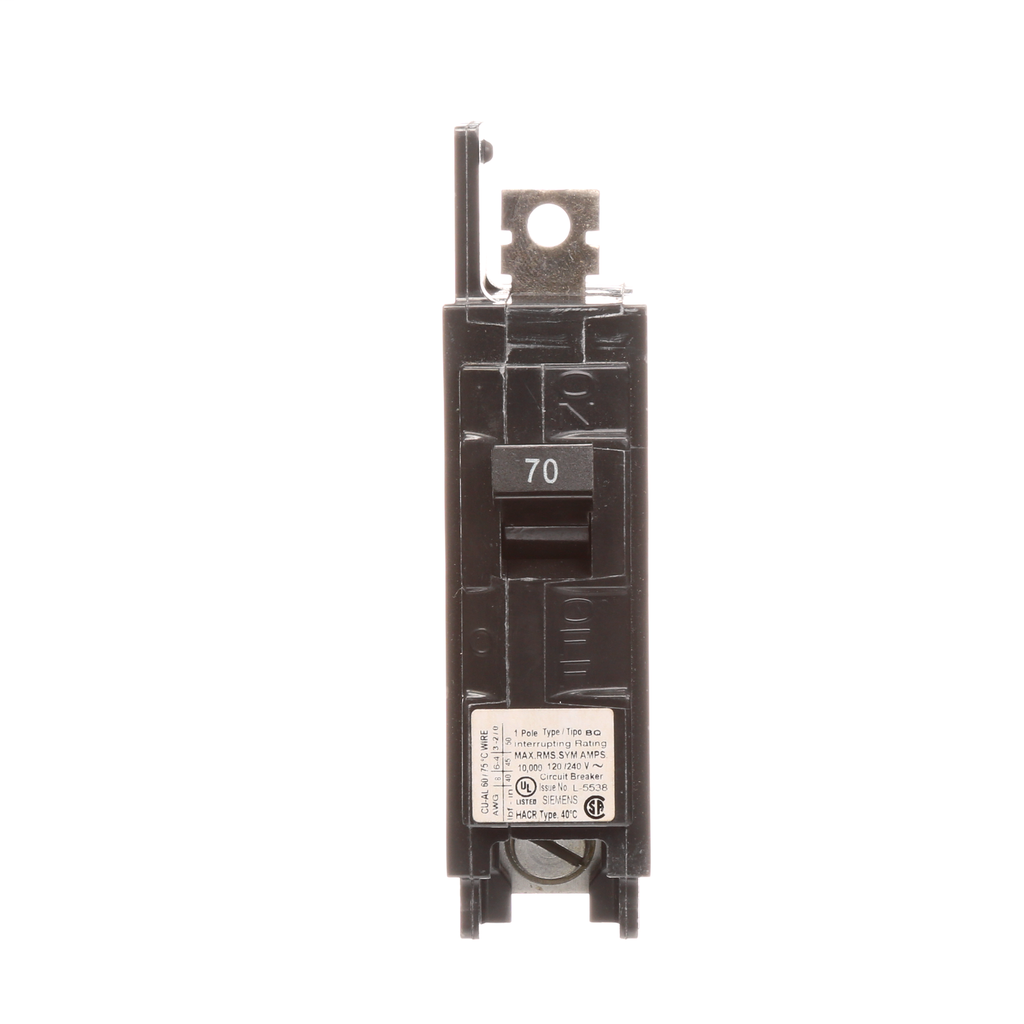

Siemens Ca BQ1B070 DISJ. BQ,TM,1P,1
Product image thumbnail 0
Product image thumbnail 1
$63.42/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # BQ1B070
North Coast Part # 1007609

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 70 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 1
  • Design of the product: BQ
  • Size of the circuit-breaker: BQ (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 4 in
  • Width [in]: 1 in
  • Depth [in]: 3 in
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: MECHANICAL LUGS
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 8 - 4AWG (CU) / 8 - 2AWG (AL)
  • Type of mounting panel: OEM PANELS

Overview

UPC 78364316118
GTiN 00783643161184
Length 3 in
Width 1 in
Voltage 120 Volt
Type BQ
Applications For Electrical Distribution
Depth 3 in
Height 4 in
Connection Type Bolt-On
Family Brand Name Siemens
TC Connection BOLT-ON
Number of Poles 1 Pole
Interrupt Rating 10 AIC
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame BQ
Actuator N/A
Trip Type Thermal Magnetic
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Blade Dimensions 3 in L x 1 in W x 4 in H
