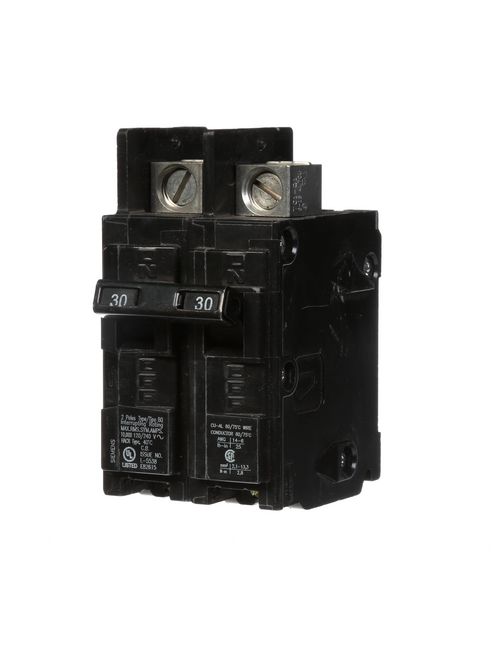

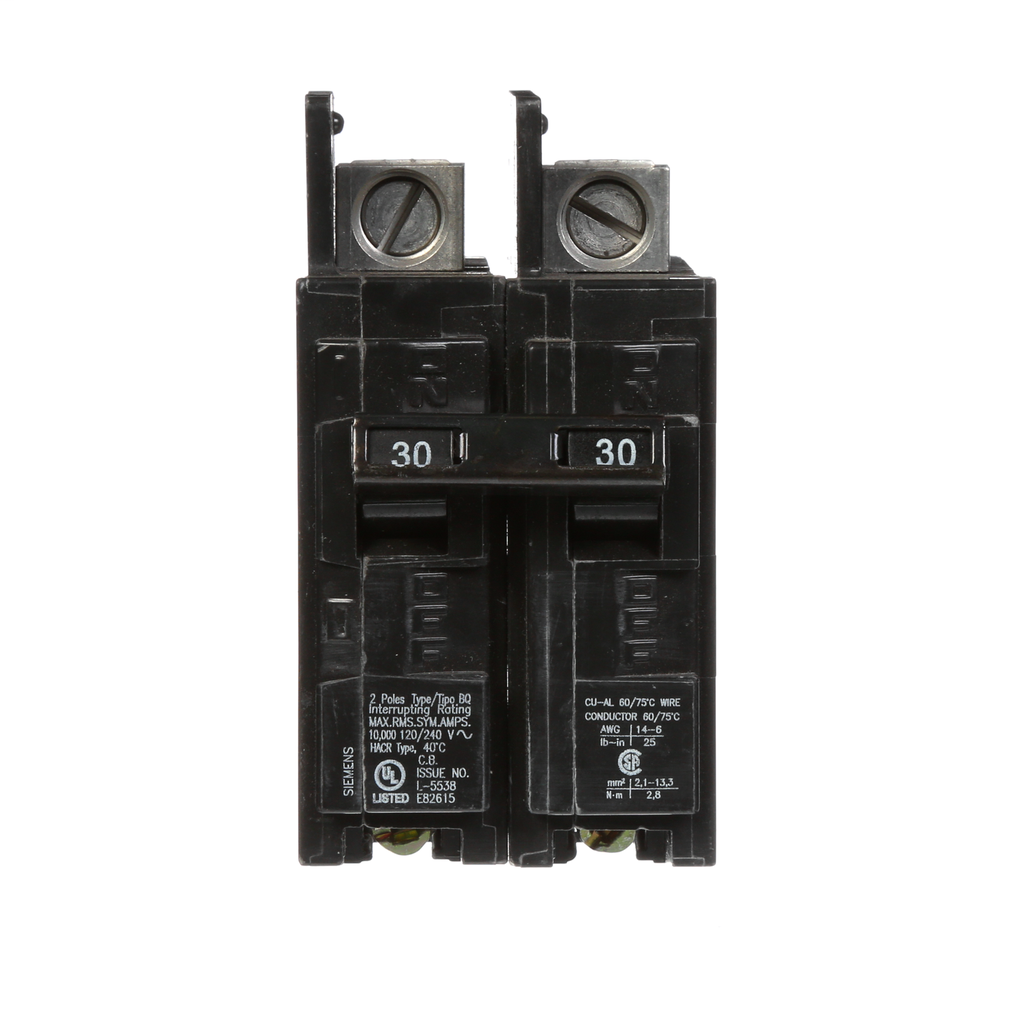

S-A BQ2B030L BRKR BQ 2P 120/240V 30
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$147.47/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # BQ2B030L
North Coast Part # 544700

Features

  • 10K AIC series rating
  • Lug in, lug out
  • Line side lugs included
  • Instantaneous trip fixed
  • Calibrated for 40?C maximum ambient application
  • UL listed

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 30 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 2
  • Design of the product: BQ
  • Size of the circuit-breaker: BQ (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 3.75 in
  • Width [in]: 2 in
  • Depth [in]: 3 in
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: MECHANICAL LUGS
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 14 - 6AWG (CU) / 12 - 6AWG (AL)
  • Type of mounting panel: OEM PANELS
  • Type of connectable conductor cross-sections at AWG conductors for supply single or multi-stranded: 16 - 6AWG (CU) / 12 - 6AWG (AL)

Categories

Overview

UPC 78364323715
Item Long Description This Siemens type BQ Circuit Breaker is a cable-in, cable-out, non-interchangeable trip molded case circuit breaker available in 10-125 Amp, 1, 2 and 3 Pole. Available in 10KAIC, 22KAIC and 65KAIC interrupting ratings. All BQ/BQH/HBQ circuit breakers are supplied with load side lugs, if line side lugs are required add suffix L to the catalog number.
GTiN 00783643237155
Length 3 in
Width 2 in
Voltage 120/240 Volt
Type BQ
Applications Electrical Distribution
Depth 3 in
Height 3.75 in
Connection Type Bolt-On
Family Brand Name Siemens
TC Connection BOLT-ON
Number of Poles 2 Pole
Interrupt Rating 10 A
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Actuator N/A
Trip Type N/A
Load Rating N/A
Enclosure N/A
Sub Brand N/A
