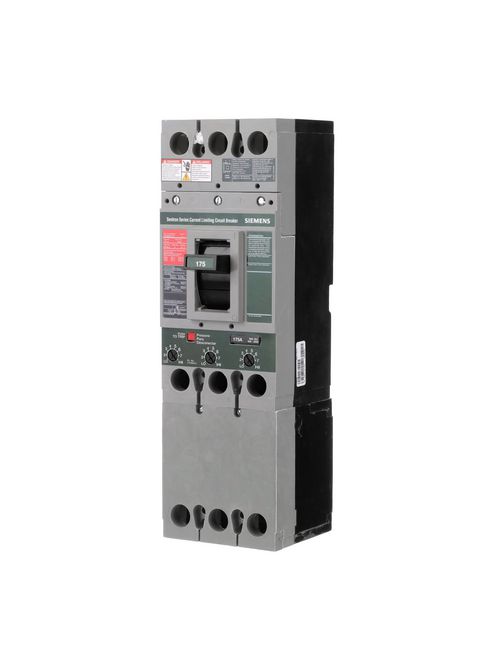

Siemens Industry CFD63B175 3-Pole 600 VAC 175 Amp 100 kA Non-Interchangeable Trip Thermal Magnetic Molded Case Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
$15,508.42/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # CFD63B175
North Coast Part # 761729

Categories

Overview

UPC 78364321218
Item Long Description SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH FUSELESS CURRENT LIMITING BREAKING CAPACITY. 175A 3-POLE (100KAIC AT 600V) (200KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x Hx D) IN 4.50 x 14.3 x 4.00.
GTiN 00783643212183
Length 7.500
Width 7.600
Operating Temperature 40 C
Voltage 600 Volt
Type CFD6
Applications Standard 40C Breaker
Height 17 in
Standard HACR,UL
Frequency 50/60 Hz
Family Brand Name Siemens
Frame FD
Actuator Varying
Amperage 175 Amp
Trip Type Thermal-Magnetic
Number of Poles 3 Pole
Interrupt Rating 100 kA
Enclosure Varying
Trip Range 900-2000
Sub Brand Sentron
TC Connection N/A
Load Rating N/A
