Siemens Ca CFD63B200 FD MCCB,100kA@
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$15,508.42/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # CFD63B200
North Coast Part # 753361

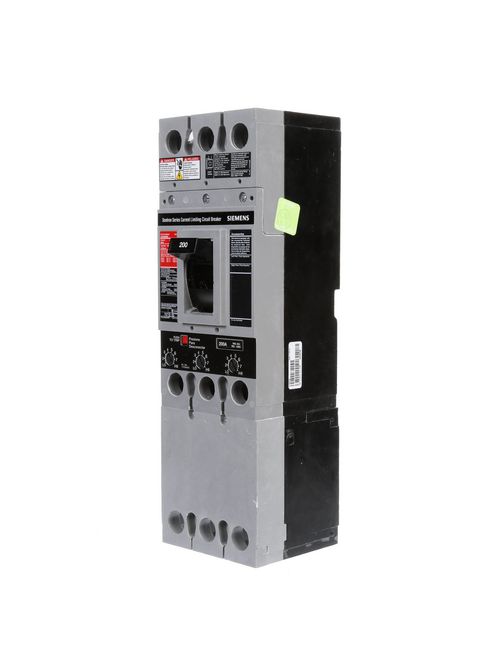

Molded case circuit FCL (fuseless current limiting) breakers for ED125A frame sentron mounting in 1 type of tripping speed CED6=100KA. Available in version 2 pole 250vdc/600vac, 3 poles 500vdc/600vac.

Categories

Overview

UPC 78364321219
Item Long Description Molded case circuit FCL (fuseless current limiting) breakers for ED125A frame sentron mounting in 1 type of tripping speed CED6=100KA. Available in version 2 pole 250vdc/600vac, 3 poles 500vdc/600vac.
GTiN 00783643212190
Length 7.400
Width 7.600
Operating Temperature 40 C
Voltage 600 Volt
Type CFD6
Applications Standard 40C Breaker
Height 17 in
Standard UL,HACR
Frequency 50/60 Hz
Temperature Rating 40 C
Family Brand Name Siemens
Frame FD
Actuator Switch Position Knob
Amperage 200 Amp
Blade Dimensions 7.4 in L x 7.6 in W x 17 in H
Trip Type Thermal Magnetic
Number of Poles 3 Pole
Interrupt Rating 100 kA
Enclosure Varying
Trip Range 900 - 2000 A
Sub Brand Sentron
TC Connection N/A
Load Rating N/A
